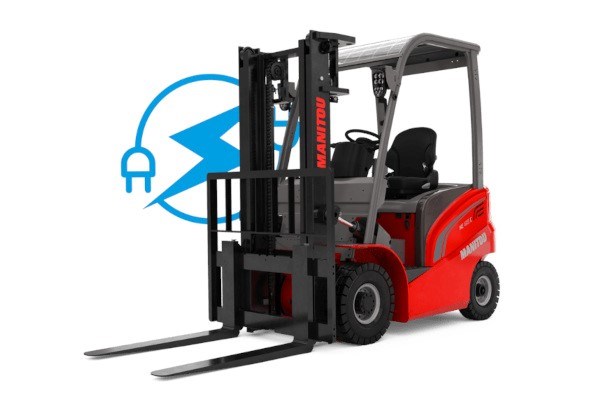

Manitou ME 425C US

Double tap to zoom

ME Forklift Trucks

ME 425C US

Overview:

Max. lifting height: 256 in
Max. capacity: 5512 lb
Turning radius: 82 in
Load center of gravity: 20 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Optimize your handling and storage operations with the Manitou ME 425C forklift. Electric, this mast model offers a maximum load capacity of 2500 kg capable of transporting your goods and various materials in complete safety. Its compact design is ideal for efficient handling under all conditions, especially in the tightest work areas. Our ME electric trucks can be configured with several options and mast types. Its 48V battery makes the ME 425C a compact and economical forklift truck, perfectly suited for light applications that do not require an 80V battery.

Specifications

Technical characteristics
Manufacturer	Manitou
Model Name	ME 425C US
Power source	Electrical
Operator type	Seated
Max. capacity	5512 lb
Load center of gravity	20 in
Load distance, centre of drive axle to fork	18 in
Wheelbase	58 in
Weight
Service weight	9480 lb
Weight on front axle (laden) / rear axle (laden)	13360 lb / 1631 lb
Weight on front axle (Unladen) / rear axle (Unladen)	4321 lb / 5159 lb
Wheels
Tires type	Solid tires
Dimensions of front wheels	23 x 9-10
Dimensions of rear wheels	18 x 7-8
Number of front wheels / rear wheels	2 / 2
Number of drive wheels	2
Front wheel gauge	42 in
Rear wheel gauge	38 in
Dimensions
Height of overhead guard (cabin)	85 in
Seat height/stand height	42 in
Height of towing bar (coupling height)	12 in
Overall length	137 in
Length to face of forks	92 in
Overall width	50 in
Forks section / width / length	5 in x 45 in x 2 in
Fork carriage ISO 2328 (class/form) A/B	2A
Fork carriage width	41 in
Ground clearance below mast	4 in
Ground clearance at centre of wheelbase	5 in
Aisle Width for pallets 1000 x 1200 crossways	147 in
Aisle width for 800 x 1200 pallet lengthways	155 in
Turning radius	82 in
Internal turning radius (over tyres)	29 in
Performances
Travel speed (laden / unladen)	9 mph-9 mph
Lifting speed (laden / unladen)	0.75 ft/s-1 ft/s
Lowering speed (laden / unladen)	1 ft/s-0.72 ft/s
Drawbar pull (Laden / Unladen)	1800 daN / 1700 daN
Gradeability (laden / unladen)	11 % / 12 %
Service brake	Hydraulic
Engine
Drive motor rating S2 60 min	11 kW
Lift motor rating at S3 15%	8.60 kW
Battery according to DIN 43531/35/36 A, B, C	DIN43531 B
Battery voltage / capacity	48 V / 700 Ah
Energy consumption according to VDI cycle (kW/h)	5.80 kWh
Miscellaneous
Type of drive control	Electronic
Working hydraulic pressure for attachments	2538 PSI
Oil flow rate for attachments	9 US gpm
Measured/guaranteed mean noise level at the ear of the operator	< 72 dB
Sound level at the driver's ear according to DIN 12 053	72 dB
