Manitou MI 25 D ST5 US

Double tap to zoom

MI Forklift Trucks

MI 25 D ST5 US

Overview:

Max. lifting height: 256 in
Max. capacity: 5512 lb
Turning radius: 89 in
Load center of gravity: 20 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

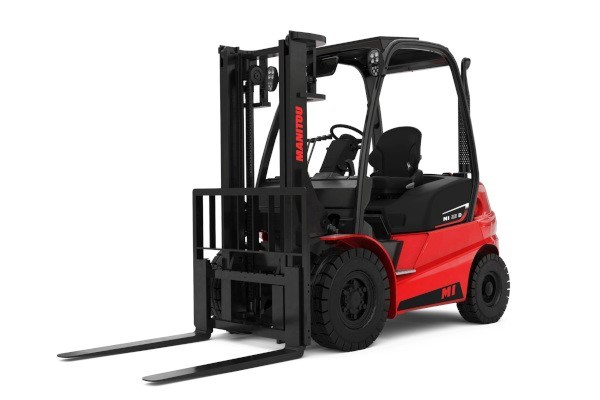

Optimise your handling operations with the MI 25 D forklift. Equipped with a 37 kW diesel engine, this Manitou model has a load capacity of 2500 kg and a lifting height of 6.5 metres (max). Designed with carefully selected components, it will efficiently support you in all your applications. Truck loading/unloading, storing and moving goods... Take advantage of its numerous standard and optional equipment to gain in productivity!

Specifications

Technical characteristics
Manufacturer	MANITOU
Model Name	MI 25 D ST5
Power source	Diesel
Operator type	Seated
Max. capacity	5512 lb
Load center of gravity	20 in
Load distance, centre of drive axle to fork	18 in
Wheelbase	63 in
Weight
Service weight	8818 lb
Weight on front axle (laden) / rear axle (laden)	12644 lb / 1687 lb
Weight on front axle (Unladen) / rear axle (Unladen)	3770 lb / 5049 lb
Wheels
Tires type	Super Elastic
Dimensions of front wheels	7.00-12 12
Dimensions of rear wheels	6.00-9 10
Number of front wheels / rear wheels	2 / 2
Number of drive wheels	2
Front wheel gauge	38 in
Rear wheel gauge	38 in
Dimensions
Height of overhead guard (cabin)	83 in
Seat height/stand height	47 in
Height of towing bar (coupling height)	14 in
Overall length	145 in
Length to face of forks	100 in
Overall width	45 in
Overall width - Single wheels	45 in
Overall width - Twinned wheels	63 in
Forks section / width / length	2 in x 5 in x 45 in
Fork carriage ISO 2328 (class/form) A/B	2A
Fork carriage width	41 in
Ground clearance below mast	5 in
Ground clearance at centre of wheelbase	7 in
Aisle Width for pallets 1000 x 1200 crossways	155 in
Aisle width for 800 x 1200 pallet lengthways	163 in
Turning radius	89 in
Internal turning radius (over tyres)	6 in
Performances
Travel speed (laden / unladen)	11 mph-11 mph
Lifting speed (laden / unladen)	2 ft/s-2 ft/s
Lowering speed (laden / unladen)	2 ft/s-2 ft/s
Drawbar pull (Laden / Unladen)	1940 daN / 1240 daN
Gradeability (laden / unladen)	20 % / 20 %
Service brake	Hydraulic
Engine
Engine brand / model	Kubota / V2607-CR-E5B
I.C. Engine power rating	37.40 kW
Rated speed	2400 rpm
Number of cylinders / Capacity of cylinders	4 - 160 in³
Miscellaneous
Working hydraulic pressure for attachments	2321 PSI
Oil flow rate for attachments	9 US gpm
Measured/guaranteed mean noise level at the ear of the operator	< 84 dB
