MI Forklift Trucks

MI 30 G US

Overview:

Max. lifting height: 256 in
Max. capacity: 6614 lb
Turning radius: 97 in
Load center of gravity: 20 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

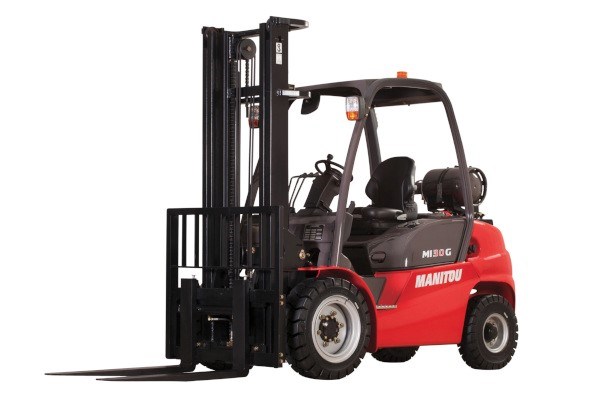

The MI 30 G is a heat engine-powered masted forklift designed for intense industrial application both indoors and outdoors, sure to please both forklift operators and fleet managers with its innovative design. Adjustable and accessible controls, optimal visibility and security systems are just the starting point, with ease of maintenance, robustness and reliability included as standard issue as well.The inching pedal feature provides a smooth and precise approach during manoeuvres, for comfort and flexibility on a daily basis, whilst access to the driver's position is made easier by the low footstep, doors on both sides and a large, sturdy handle grip on the left side.

Specifications

Technical characteristics
Manufacturer	Manitou
Model Name	MI 30 G
Power source	Lpg
Operator type	Seated
Max. capacity	6614 lb
Load center of gravity	20 in
Load distance, centre of drive axle to fork	19 in
Wheelbase	67 in
Weight
Standard mast reference of the machine	FVD 33
Service weight	9899 lb
Weight on front axle (laden) / rear axle (laden)	14462 lb / 2050 lb
Weight on front axle (Unladen) / rear axle (Unladen)	3979 lb / 5919 lb
Wheels
Tires type	Solid tires
Dimensions of front wheels	28-9-15 12
Dimensions of rear wheels	6.50-10 10
Number of front wheels / rear wheels	2 / 2
Number of drive wheels	2
Front wheel gauge	40 in
Rear wheel gauge	38 in
Dimensions
Height of overhead guard (cabin)	84 in
Seat height/stand height	48 in
Height of towing bar (coupling height)	14 in
Overall length	152 in
Length to face of forks	107 in
Overall width	48 in
Overall width - Single wheels	48 in
Forks section / width / length	2 in x 5 in x 45 in
Fork carriage ISO 2328 (class/form) A/B	3A
Fork carriage width	43 in
Ground clearance below mast	5 in
Ground clearance at centre of wheelbase	8 in
Aisle Width for pallets 1000 x 1200 crossways	163 in
Aisle width for 800 x 1200 pallet lengthways	171 in
Turning radius	97 in
Internal turning radius (over tyres)	6 in
Performances
Travel speed (laden / unladen)	11 mph-11 mph
Lifting speed (laden / unladen)	1 ft/s-2 ft/s
Lowering speed (laden / unladen)	2 ft/s-2 ft/s
Drawbar pull (Laden / Unladen)	1740 daN / 1080 daN
Gradeability (laden / unladen)	20 % / 20 %
Service brake	Hydraulic
Engine
Engine brand / model	GCT (ex-Nissan) / K25
I.C. Engine power rating	46 kW
Rated speed	2400 rpm
Number of cylinders / Capacity of cylinders	4 - 152 in³
Miscellaneous
Working hydraulic pressure for attachments	2321 PSI
Oil flow rate for attachments	19 US gpm
Measured/guaranteed mean noise level at the ear of the operator	< 80 dB
Sound level at the driver's ear according to DIN 12 053	80 dB
