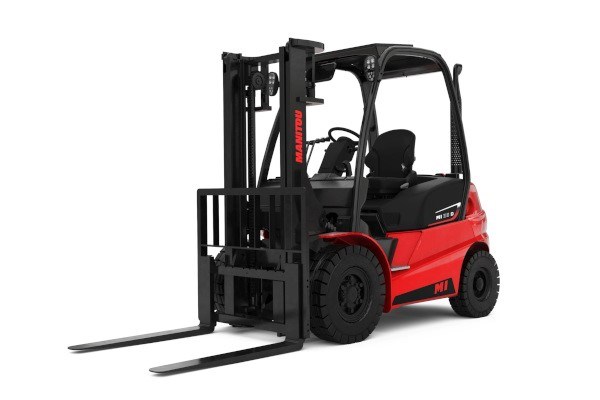

Manitou MI 35 D ST5 US

Double tap to zoom

MI Forklift Trucks

MI 35 D ST5 US

Overview:

Max. lifting height: 256 in
Max. capacity: 7716 lb
Turning radius: 97 in
Load center of gravity: 20 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Are you looking for a handling solution that is both compact and capable of moving heavy loads with precision? Discover the performance of the Manitou MI 35 D forklift. Equipped with solid tyres and a powerful 37 kW Kubota diesel engine, our truck meets all your requirements. Move loads of up to 3500 kg and carry out all your operations efficiently, even in narrow aisles of your warehouses, logistics platforms or production sites!

Specifications

Technical characteristics
Manufacturer	MANITOU
Model Name	MI 35 D ST5
Power source	Diesel
Operator type	Seated
Max. capacity	Weight
Service weight	10714 lb
Weight on front axle (laden) / rear axle (laden)	16226 lb / 2205 lb
Weight on front axle (Unladen) / rear axle (Unladen)	4023 lb / 6691 lb
Wheels
Tires type	Super Elastic
Dimensions of front wheels	28-9-15 12
Dimensions of rear wheels	6.50-10 10
Number of front wheels / rear wheels	2 / 2
Number of drive wheels	2
Front wheel gauge	40 in
Rear wheel gauge	38 in
Dimensions
Height of overhead guard (cabin)	84 in
Seat height/stand height	48 in
Height of towing bar (coupling height)	14 in
Overall length	155 in
Length to face of forks	110 in
Overall width	48 in
Overall width - Single wheels	48 in
Overall width - Twinned wheels	68 in
Forks section / width / length	2 in x 5 in x 45 in
Fork carriage ISO 2328 (class/form) A/B	3A
Fork carriage width	43 in
Ground clearance below mast	5 in
Ground clearance at centre of wheelbase	8 in
Aisle Width for pallets 1000 x 1200 crossways	165 in
Aisle width for 800 x 1200 pallet lengthways	173 in
Turning radius	97 in
Internal turning radius (over tyres)	6 in
Performances
Travel speed (laden / unladen)	11 mph-11 mph
Lifting speed (laden / unladen)	1 ft/s-1 ft/s
Lowering speed (laden / unladen)	1 ft/s-1 ft/s
Drawbar pull (Laden / Unladen)	2000 daN / 1520 daN
Gradeability (laden / unladen)	18 % / 20 %
Service brake	Hydraulic
Engine
Engine brand / model	Kubota / V2607-CR-E5B
I.C. Engine power rating	37.40 kW
Rated speed	2400 rpm
Number of cylinders / Capacity of cylinders	4 - 160 in³
Miscellaneous
Working hydraulic pressure for attachments	2321 PSI
Oil flow rate for attachments	9 US gpm
Measured/guaranteed mean noise level at the ear of the operator	< 84 dB
