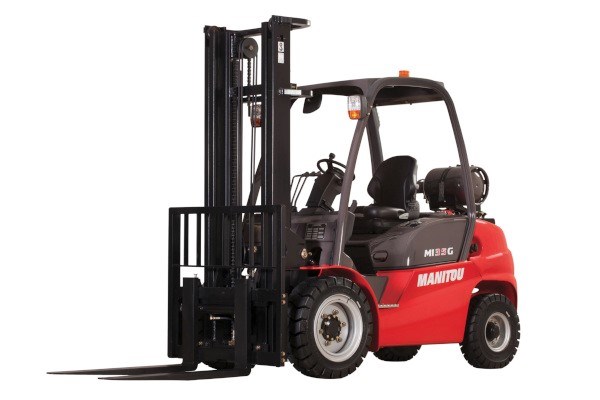

Manitou MI 35 G US

Double tap to zoom

MI Forklift Trucks

MI 35 G US

Overview:

Max. lifting height: 256 in
Max. capacity: 7716 lb
Turning radius: 99 in
Load center of gravity: 20 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The MI 35 G is an industrial forklift designed for both indoor and outdoor applications with a maximum load capacity of 3.5 tonnes. It comes equipped with a Nissan LPG engine, with a wide range of masts and tyres available to meet your exact needs.The streamlined and spacious driver's position provides the operator with a pleasant and safe working space, which can easily be accessed from both sides. The ergonomic controls were designed to make day-to-day operation easier on the driver, and visibility has been maximised with the openwork roof, increased space between mast, slim profile rear posts for enhanced safety.

Specifications

Technical characteristics
Manufacturer	Manitou
Model Name	MI 35 G
Power source	Lpg
Operator type	Seated
Max. capacity	7716 lb
Load center of gravity	20 in
Load distance, centre of drive axle to fork	19 in
Wheelbase	67 in
Weight
Service weight	10450 lb
Weight on front axle (laden) / rear axle (laden)	16006 lb / 2161 lb
Weight on front axle (Unladen) / rear axle (Unladen)	3913 lb / 6537 lb
Wheels
Tires type	Solid tires
Dimensions of front wheels	28-9-15 12
Dimensions of rear wheels	6.50-10 10
Number of front wheels / rear wheels	2 / 2
Number of drive wheels	2
Front wheel gauge	40 in
Rear wheel gauge	38 in
Dimensions
Height of overhead guard (cabin)	84 in
Seat height/stand height	48 in
Height of towing bar (coupling height)	14 in
Overall length	155 in
Length to face of forks	110 in
Overall width	48 in
Overall width - Single wheels	48 in
Forks section / width / length	2 in x 5 in x 45 in
Fork carriage ISO 2328 (class/form) A/B	3A
Fork carriage width	43 in
Ground clearance below mast	5 in
Ground clearance at centre of wheelbase	8 in
Aisle Width for pallets 1000 x 1200 crossways	165 in
Aisle width for 800 x 1200 pallet lengthways	173 in
Turning radius	99 in
Internal turning radius (over tyres)	6 in
Performances
Travel speed (laden / unladen)	11 mph-11 mph
Lifting speed (laden / unladen)	1 ft/s-2 ft/s
Lowering speed (laden / unladen)	2 ft/s-1 ft/s
Drawbar pull (Laden / Unladen)	1750 daN / 1100 daN
Gradeability (laden / unladen)	18 % / 20 %
Service brake	Hydraulic
Engine
Engine brand / model	GCT (ex-Nissan) / K25
I.C. Engine power rating	46 kW
Rated speed	2400 rpm
Number of cylinders / Capacity of cylinders	4 - 152 in³
Miscellaneous
Working hydraulic pressure for attachments	2321 PSI
Oil flow rate for attachments	19 US gpm
Measured/guaranteed mean noise level at the ear of the operator	< 80 dB
Sound level at the driver's ear according to DIN 12 053	80 dB
