MI Forklift Trucks

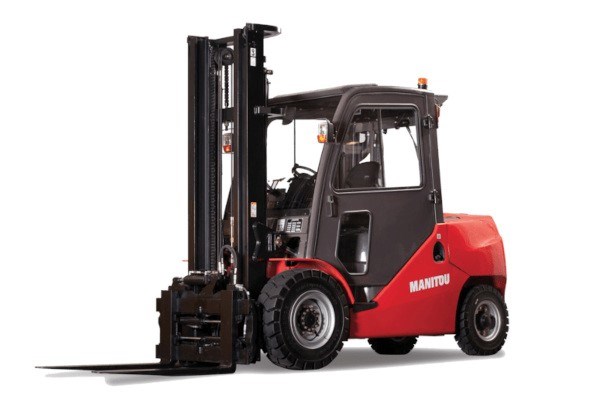

MI 50 D US

Overview:

Max. lifting height: 236 in Max. capacity: 11023 lb Turning radius: 115 in Load center of gravity: 20 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The MI 50 D lift truck is ideal for all outdoor load handling operations up to 5 tonnes on smooth traveling surfaces while also being perfectly at ease indoors. Its powerful, smooth engine will give you the flexibility your operators require. You will appreciate the immediate cost benefits that this machine can provide thanks to its simple maintenance and high reliability, ensuring an optimum level of utilization. The MI 50 D has nothing to envy the other models in the range where comfort is concerned: easy-to-access driving cab, an ultra-clear dashboard, simple, intuitive controls, an openwork roof and excellent driver visibility. Ask your dealer for a demonstration.

Specifications

Technical characteristics
Manufacturer	Manitou
Model Name	MI 50 D US
Power source	Diesel
Operator type	Seated
Max. capacity	11023 lb
Load center of gravity	20 in
Load distance, centre of drive axle to fork	22 in
Wheelbase	85 in
Weight
Standard mast reference of the machine	FVD 30
Service weight	14991 lb
Weight on front axle (laden) / rear axle (laden)	23038 lb / 2976 lb
Weight on front axle (Unladen) / rear axle (Unladen)	6614 lb / 8378 lb
Wheels
Tires type	Pneumatic
Dimensions of front wheels	300-15-18PR
Dimensions of rear wheels	7.00-12-12PR
Number of front wheels / rear wheels	2 / 2
Number of drive wheels	2
Front wheel gauge	47 in
Rear wheel gauge	44 in
Dimensions
Height of overhead guard (cabin)	94 in
Seat height/stand height	54 in
Height of towing bar (coupling height)	18 in
Overall length	176 in
Length to face of forks	128 in
Overall width	59 in
Overall width - Single wheels	59 in
Forks section / width / length	2 in x 6 in x 48 in
Fork carriage ISO 2328 (class/form) A/B	3A
Fork carriage width	49 in
Ground clearance below mast	7 in
Ground clearance at centre of wheelbase	9 in
Aisle Width for pallets 1000 x 1200 crossways	189 in
Aisle width for 800 x 1200 pallet lengthways	194 in
Turning radius	115 in
Internal turning radius (over tyres)	5 in
Performances
Travel speed (laden / unladen)	14 mph-15 mph
Lifting speed (laden / unladen)	1 ft/s-1 ft/s
Lowering speed (laden / unladen)	2 ft/s-2 ft/s
Drawbar pull (Laden / Unladen)	4000 daN / 2100 daN
Gradeability (laden / unladen)	31 % / 34 %
Service brake	Hydraulic
Engine
Engine brand / model / norm	Cummins / QSF2.8T4F / Tier 4 final
I.C. Engine power rating	55 kW
Rated speed	2600 rpm
Number of cylinders / Capacity of cylinders	4 - 171 in³
Miscellaneous
Working hydraulic pressure for attachments	2321 PSI
Oil flow rate for attachments	24 US gpm
Measured/guaranteed mean noise level at the ear of the operator	< 84 dB
Sound level at the driver's ear according to DIN 12 053	84 dB
