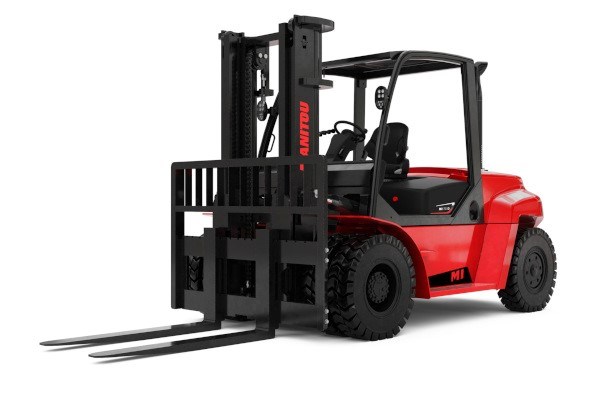

Manitou MI 70 D US

Double tap to zoom

MI Forklift Trucks

MI 70 D US

Overview:

Max. lifting height: 236 in
Max. capacity: 15432 lb
Load center of gravity: 24 in
Power source: Diesel

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Designed for demanding applications, the MI 70 D cart offers a high level of performance especially with attachments. Equipped with a 55 kW Deutz motor, the MI 70 D is the perfect tool for intensive indoor and outdoor use. Its ZF transmission and oil-immersed brakes also ensure a high level of reliability, whatever your job!

Specifications

Technical characteristics
Manufacturer	Manitou
Model Name	MI 70 D US
Power source	Diesel
Operator type	Seated
Max. capacity	15432 lb
Load center of gravity	24 in
Load distance, centre of drive axle to fork	24 in
Wheelbase	91 in
Weight
Service weight	22289 lb
Weight on front axle (laden) / rear axle (laden)	33709 lb / 4012 lb
Weight on front axle (Unladen) / rear axle (Unladen)	9083 lb / 13206 lb
Wheels
Tires type	Pneumatic
Dimensions of front wheels	8.25-15-14PR
Dimensions of rear wheels	8.25-15-14PR
Number of front wheels / rear wheels	4 / 2
Number of drive wheels	2
Front wheel gauge	59 in
Rear wheel gauge	67 in
Dimensions
Height of overhead guard (cabin)	96 in
Seat height/stand height	53 in
Height of towing bar (coupling height)	28 in
Overall length	189 in
Length to face of forks	141 in
Overall width	78 in
Overall width - Twinned wheels	78 in
Forks section / width / length	3 in x 6 in x 48 in
Fork carriage ISO 2328 (class/form) A/B	4A
Fork carriage width	67 in
Ground clearance below mast	7 in
Ground clearance at centre of wheelbase	11 in
Aisle Width for pallets 1000 x 1200 crossways	207 in
Aisle width for 800 x 1200 pallet lengthways	212 in
Turning radius	131 in
Internal turning radius (over tyres)	48 in
Performances
Travel speed (laden / unladen)	11 mph-15 mph
Lifting speed (laden / unladen)	1 ft/s-1 ft/s
Lowering speed (laden / unladen)	2 ft/s-1 ft/s
Drawbar pull (Laden / Unladen)	6280 daN / 3600 daN
Gradeability (laden)	34 %
Service brake	Hydraulic
Engine
Engine brand / model	Deutz / TCD 3.6L 4
I.C. Engine power rating	55.40 kW
Rated speed	2200 rpm
Number of cylinders / Capacity of cylinders	4 - 220 in³
Miscellaneous
Working hydraulic pressure for attachments	2828 PSI
Oil flow rate for attachments	15 US gpm
Measured/guaranteed mean noise level at the ear of the operator	< 84 dB
Sound level at the driver's ear according to DIN 12 053	84 dB
