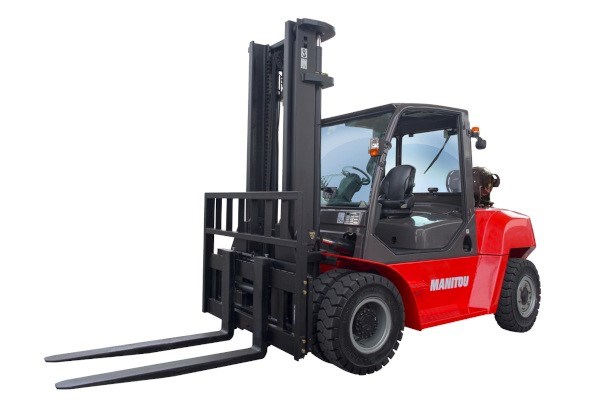

Manitou MI 70 G US

Double tap to zoom

MI Forklift Trucks

MI 70 G US

Overview:

Max. lifting height: 236 in
Max. capacity: 15432 lb
Turning radius: 131 in
Load center of gravity: 24 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Are you after a handler for both indoor and outdoor applications that's capable of handling loads of up to 7 tonnes? The Manitou MI 70 G was designed to meet the demanding needs of professionals who don't want to compromise on performance, comfort and budget.The intuitive controls make it easy to get up and running whilst the backlit LCD screen and excellent visibility immediately enhance productivity. The MI 70 G is also easy to maintain as mechanics have instant access to internal parts, whilst those on tight budgets will find a lot to like in its robustness and reliability.

Specifications

Technical characteristics
Manufacturer	Manitou
Model Name	MI 70 G
Power source	Lpg
Operator type	Seated
Max. capacity	15432 lb
Load center of gravity	24 in
Load distance, centre of drive axle to fork	24 in
Wheelbase	91 in
Weight
Service weight	21153 lb
Weight on front axle (laden) / rear axle (laden)	32695 lb / 3891 lb
Weight on front axle (Unladen) / rear axle (Unladen)	8620 lb / 12533 lb
Wheels
Tires type	Pneumatic
Dimensions of front wheels	8.25-15-14PR
Dimensions of rear wheels	8.25-15-14PR
Number of front wheels / rear wheels	4 / 2
Number of drive wheels	2
Front wheel gauge	59 in
Rear wheel gauge	67 in
Dimensions
Height of overhead guard (cabin)	96 in
Seat height/stand height	53 in
Height of towing bar (coupling height)	28 in
Overall length	189 in
Length to face of forks	141 in
Overall width	78 in
Overall width - Twinned wheels	78 in
Forks section / width / length	3 in x 6 in x 48 in
Fork carriage ISO 2328 (class/form) A/B	4A
Fork carriage width	67 in
Ground clearance below mast	7 in
Ground clearance at centre of wheelbase	11 in
Aisle Width for pallets 1000 x 1200 crossways	207 in
Aisle width for 800 x 1200 pallet lengthways	212 in
Turning radius	131 in
Internal turning radius (over tyres)	48 in
Performances
Travel speed (laden / unladen)	17 mph-19 mph
Lifting speed (laden / unladen)	1 ft/s-2 ft/s
Lowering speed (laden / unladen)	2 ft/s-1 ft/s
Drawbar pull (Laden / Unladen)	5900 daN / 2750 daN
Gradeability (laden)	27 %
Service brake	Hydraulic
Engine
Engine brand / model	PSI / 4,3L
I.C. Engine power rating	74 kW
Rated speed	2300 rpm
Number of cylinders / Capacity of cylinders	6 - 262 in³
Miscellaneous
Working hydraulic pressure for attachments	2828 PSI
Oil flow rate for attachments	32 US gpm
Measured/guaranteed mean noise level at the ear of the operator	< 88 dB
Sound level at the driver's ear according to DIN 12 053	88 dB
