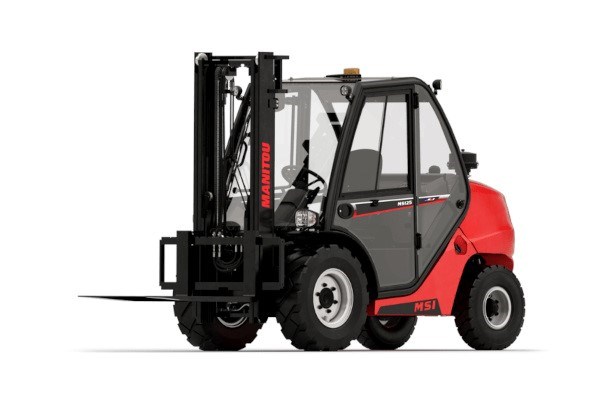

Manitou MSI 25 ST5

Double tap to zoom

MSI Forklift Trucks

MSI 25 ST5

Overview:

Max. lifting height: 236 in
Max. capacity: 5512 lb
Turning radius: 103 in
Load center of gravity: 20 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The semi-industrial forklift MSI 25 has been designed to handle all types of loads, up to 2500 kg. Handy, robust and equipped with tires adapted to your application, it allows you to transport your goods whatever your constraints: unstabilized or degraded grounds, slippery grounds, high-precision work requiring regulated power... For your comfort, it has intuitive controls that make driving easier. Thanks to its overall width and wheelbase, which are greater than those of an industrial forklift truck, the MSI 25 helps you handle long loads or several pallets at the same time in complete safety.

Specifications

Technical characteristics
Manufacturer	Manitou
Model Name	MSI 25 ST5
Power source	Diesel
Operator type	Seated
Max. capacity	5512 lb
Load center of gravity	20 in
Load distance, centre of drive axle to fork	24 in
Wheelbase	75 in
Weight
Standard mast reference of the machine	FVD 33
Service weight	8598 lb
Weight on front axle (laden) / rear axle (laden)	12632 lb / 1477 lb
Weight on front axle (Unladen) / rear axle (Unladen)	3505 lb / 5093 lb
Wheels
Tires type	Pneumatic
Dimensions of front wheels	300-15/18 6T P43
Dimensions of rear wheels	7.00-12/12 ED PLUS
Number of front wheels / rear wheels	2 / 2
Number of drive wheels	2
Front wheel gauge	41 in
Rear wheel gauge	44 in
Dimensions
Height of overhead guard (cabin)	82 in
Seat height/stand height	38 in
Overall length	165 in
Length to face of forks	118 in
Overall width	52 in
Forks section / width / length	2 in x 4 in x 47 in
Fork carriage ISO 2328 (class/form) A/B	2A
Fork carriage width	50 in
Ground clearance below mast	10 in
Ground clearance at centre of wheelbase	9 in
Aisle Width for pallets 1000 x 1200 crossways	183 in
Turning radius	103 in
Performances
Travel speed (laden / unladen)	13 mph-13 mph
Lifting speed (laden / unladen)	2 ft/s-2 ft/s
Lowering speed (laden / unladen)	2 ft/s-0.98 ft/s
Drawbar pull (Laden)	1900 daN
Gradeability (laden)	31 %
Service brake	Hydraulic brakes by loss of pressure
Engine
Engine brand / model / norm	Kubota / D1803 CRT E5B / Stage V
I.C. Engine power rating	37 kW
Rated speed	2700 rpm
Number of cylinders / Capacity of cylinders	3 - 111 in³
Miscellaneous
Type of drive control	Electronic
Working hydraulic pressure for attachments	3191 PSI
Oil flow rate for attachments	12 US gpm
Sound level at the driver's ear according to DIN 12 053	81 dB
