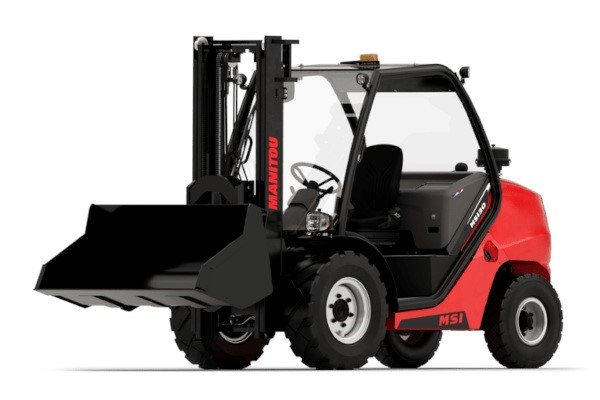

Manitou MSI 30 ST5

Double tap to zoom

MSI Forklift Trucks

MSI 30 ST5

Overview:

Max. lifting height: 236 in
Max. capacity: 6614 lb
Turning radius: 104 in
Load center of gravity: 20 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The MSI 30 semi-industrial forklift allows you to easily move loads weighing up to 3000 kg. Offering a maximum lift height of 6 meters and exceptional ground clearance, it adapts to your various semi-industrial applications. Its hydrostatic transmission allows you to work with mastery and millimetric precision. The MSI 30 has been designed with 4 types of suspension: cab, seat, tires and load shock absorber. This ideal driving comfort combined with the optimal visibility through the mast and the panoramic roof of the MSI 30 contribute to the reduction of fatigue and MSD of the drivers.

Specifications

Technical characteristics
Manufacturer	Manitou
Model Name	MSI 30 ST5
Power source	Diesel
Operator type	Seated
Max. capacity	6614 lb
Load center of gravity	20 in
Load distance, centre of drive axle to fork	25 in
Wheelbase	75 in
Weight
Standard mast reference of the machine	FVD 33
Service weight	9700 lb
Weight on front axle (laden) / rear axle (laden)	14462 lb / 1852 lb
Weight on front axle (Unladen) / rear axle (Unladen)	3660 lb / 6041 lb
Wheels
Tires type	Pneumatic
Dimensions of front wheels	300-15/18 6T P43
Dimensions of rear wheels	7.00-12/12 ED PLUS
Number of front wheels / rear wheels	2 / 2
Number of drive wheels	2
Front wheel gauge	41 in
Rear wheel gauge	44 in
Dimensions
Height of overhead guard (cabin)	82 in
Seat height/stand height	38 in
Overall length	167 in
Length to face of forks	119 in
Overall width	52 in
Forks section / width / length	2 in x 4 in x 47 in
Fork carriage ISO 2328 (class/form) A/B	3A
Fork carriage width	50 in
Ground clearance below mast	10 in
Ground clearance at centre of wheelbase	9 in
Aisle Width for pallets 1000 x 1200 crossways	184 in
Turning radius	104 in
Performances
Travel speed (laden / unladen)	13 mph-13 mph
Lifting speed (laden / unladen)	2 ft/s-2 ft/s
Lowering speed (laden / unladen)	2 ft/s-0.98 ft/s
Drawbar pull (Laden)	1900 daN
Gradeability (laden)	27 %
Service brake	Hydraulic brakes by loss of pressure
Engine
Engine brand / model	Kubota / D1803 CRT E5B
I.C. Engine power rating	37 kW
Rated speed	2700 rpm
Number of cylinders / Capacity of cylinders	3 - 111 in³
Miscellaneous
Type of drive control	Electronic
Working hydraulic pressure for attachments	3191 PSI
Oil flow rate for attachments	12 US gpm
Sound level at the driver's ear according to DIN 12 053	81 dB
