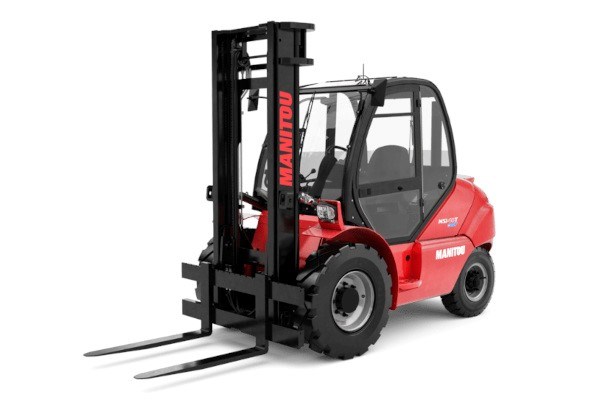

Manitou MSI 40 ST5

Double tap to zoom

MSI Forklift Trucks

MSI 40 ST5

Overview:

Max. lifting height: 236 in
Max. capacity: 8818 lb
Turning radius: 113 in
Load center of gravity: 20 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Drive your forklift easily whatever the type of ground. The concept of large wheels at the front combined with hydrostatic transmission give the MSI models excellent flexibility of use. With a capacity of 4 tons, the MSI 40 is particularly manoeuvrable and flexible of use. Its stability and versatility make it at home in warehouses as well as in stabilised or unstabilised outdoor storage yards.

Specifications

Technical characteristics
Manufacturer	MANITOU
Model Name	MSI 40 ST5
Power source	Diesel
Operator type	Seated
Max. capacity	8818 lb
Load center of gravity	20 in
Load distance, centre of drive axle to fork	27 in
Wheelbase	82 in
Weight
Standard mast reference of the machine	FVD 37
Service weight	15388 lb
Weight on front axle (laden)	20382 lb
Weight on front axle (Unladen)	7077 lb
Wheels
Tires type	Pneumatic
Dimensions of front wheels	315/70 R22,5 KMAX
Dimensions of rear wheels	225/75 R15 XZM
Number of front wheels / rear wheels	2 / 2
Number of drive wheels	2
Front wheel gauge	56 in
Rear wheel gauge	45 in
Dimensions
Height of overhead guard (cabin)	96 in
Seat height/stand height	56 in
Height of towing bar (coupling height)	24 in
Overall length	177 in
Length to face of forks	130 in
Overall width	68 in
Forks section / width / length	2 in x 6 in x 47 in
Fork carriage ISO 2328 (class/form) A/B	3A
Fork carriage width	66 in
Ground clearance below mast	7 in
Ground clearance at centre of wheelbase	9 in
Aisle Width for pallets 1000 x 1200 crossways	195 in
Turning radius	113 in
Performances
Travel speed (laden / unladen)	12 mph-12 mph
Lifting speed (laden)	2 ft/s
Lowering speed (laden)	2 ft/s
Drawbar pull (Laden)	3103 daN
Gradeability (laden)	34 %
Service brake	Hydraulic
Engine
Engine brand / model	Deutz / TCD 2,9L
I.C. Engine power rating	55 kW
Rated speed	2200 rpm
Number of cylinders / Capacity of cylinders	4 - 177 in³
Miscellaneous
Type of drive control	Electronic
Working hydraulic pressure for attachments	3336 PSI
Oil flow rate for attachments	12 US gpm
Sound level at the driver's ear according to DIN 12 053	81 dB
