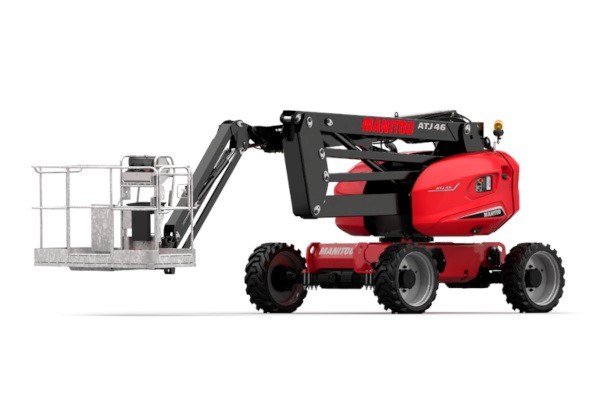

Manitou ATJ 46

Double tap to zoom

ATJ Aerial Work Platforms

ATJ 46

Overview:

Maximum outreach: 27 ft 3 in
Overhang:: 24 ft 7 in
Platform capacity: 500 lb
Number of people (indoor): 2

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Tackle all aerial projects no matter the ground conditions with the ATJ 46 articulating boom lift. This compact MEWP guarantees excellent performance on rough terrain, thanks to its robust chassis and high ground clearance. To facilitate your operations in harsh environments, the ATJ 46 features a full standard galvanized work platform resistant to extreme conditions, helping to improve TCO. Easy to use, powerful, with an excellent working range through important offsets, the ATJ 46 articulated mobile elevating work platform is perfect for your every-day aerial solutions!

Specifications

Capacities
Working height	52 ft 6 in
Platform height	46 ft
Max. outreach	27 ft 3 in
Overhang	24 ft 7 in
Pendular arm rotation (top / bottom)	+65 ° / -59.50 °
Platform capacity	500 lb
Turret rotation	350 °
Platform rotation (right / left)	90 ° / 90 °
Number of people (indoor / outdoor)	2 / 2
Weight and dimensions
Platform weight*	13426 lb
Platform dimensions (length x width)	6 ft 11 in x 2 ft 7 in
Floor height (access)	1 ft 4 in
Overall length	21 ft 11 in
Overall width	7 ft 7 in
Overall height	7 ft 9 in
Overall length (stowed)	14 ft 9 in
Overall height (stowed)	9 ft 3 in
Counterweight offset (turret at 90Â°)	9 in
Counterweight Oversize / Reach	9 in
External turning radius	17 ft
Ground clearance at centre of wheelbase	1 ft 2 in
Wheelbase	7 ft 3 in
Performances
Drive speed - stowed	3 mph
Drive speed - raised	0.62 mph
Gradeability	45 %
Wheels
Tires type	Foam-filled
Standard tires	834 x 298 mm
Drive wheels (front / rear)	2 / 2
Steering wheels (front / rear)	2 / 0
Braking wheels (front / rear)	0 / 2
Engine/Battery
Engine brand / model	Kubota - D1105-E4B
Engine norm	Interim Tier 4, Stage IIIA, Stage V
I.C. Engine power rating / Power	24.80 Hp / 18.50 kW
Miscellaneous
Ground Pressure	139 PSI
Hydraulic Pressure	4931 PSI
Hydraulic tank capacity	14 US gal
Fuel tank	14 US gal
Noise to environment (LwA)	< 105 dB
Vibration on hands/arms	< 2 ft/s²
Daily consumption **	1 US gal
Standards compliance
This machine is in compliance with:	ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
