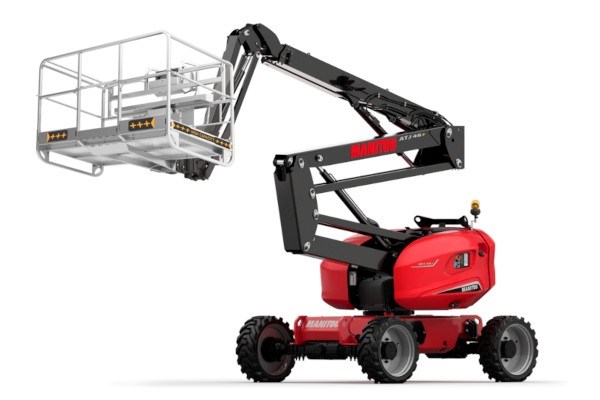

Manitou ATJ 46+

Double tap to zoom

ATJ Aerial Work Platforms

ATJ 46+

Overview:

Maximum outreach: 26 ft 4 in
Overhang: 24 ft 11 in
Platform capacity: 899 lb
Gradeability: 45 %

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Enjoy the handling performance of the ATJ 46+ high capacity articulated boom lift. Thanks to its compact structure, all-terrain design and high ground clearance, this MEWP has excellent performance on uneven surfaces with the ability to work in cramped, difficult to access areas. The extra capacity in the workplatform of the ATJ 46+ is designed to fit 3 operators. Increased operator comfort is provided by the large spacious workplatform, ergonomic driving position and excellent visibility of the loads and the jobsite environment. Make smoother movements and increase productivity with the ATJ 46+ articulated aerial workplatform!

Specifications

Capacities
Working height	53 ft 2 in
Floor height (access)	1 ft 3 in
Platform height	46 ft 7 in
Max. outreach	26 ft 4 in
Overhang	24 ft 11 in
Pendular arm rotation (top / bottom)	+66.50 ° / 65.80 °
Platform capacity	899 lb
Turret rotation	360 °
Platform rotation (right / left)	90 ° / 90 °
Weight and dimensions
Platform weight*	16535 lb
Platform dimensions (length x width)	7 ft 7 in x 2 ft 11 in
Overall length	23 ft 3 in
Overall width	8 ft
Overall height	8 ft 1 in
Overall length (stowed)	16 ft 1 in
Overall height (stowed)	9 ft 8 in
Counterweight offset (turret at 90Â°)	6 in
External turning radius	13 ft 5 in
Ground clearance at centre of wheelbase	1 ft 4 in
Wheelbase	7 ft 3 in
Performances
Drive speed - stowed	3 mph
Drive speed - raised	0.62 mph
Gradeability	45 %
Wheels
Tires type	Foam-filled
Standard tires	36 x 15 D610 / 910 x 370 mm
Drive wheels (front / rear)	2 / 2
Steering wheels (front / rear)	2 / 2
Braking wheels (front / rear)	0 / 2
Engine/Battery
Engine brand / model	Kubota - D1105-E4B
Engine norm	Tier 4 final
I.C. Engine power rating / Power	24.80 Hp / 18.50 kW
Miscellaneous
Ground Pressure	167 PSI
Hydraulic Pressure	4931 PSI
Hydraulic tank capacity	14 US gal
Fuel tank	13 US gal
Noise to environment (LwA)	< 98 dB
Standards compliance
This machine is in compliance with:	ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
