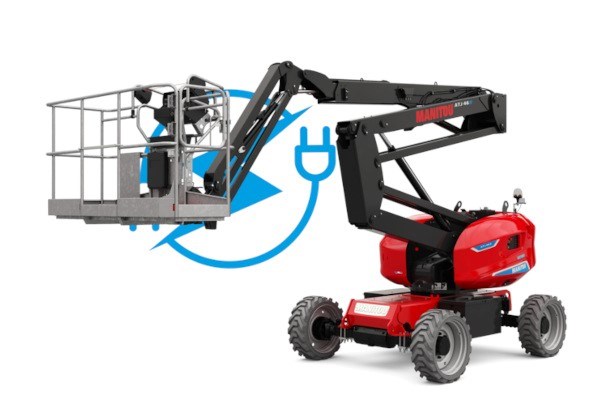

Manitou ATJ 46 e

Double tap to zoom

ATJ Aerial Work Platforms

ATJ 46 e

Overview:

Maximum outreach: 26 ft 7 in
Overhang: 24 ft 5 in
Platform capacity: 551 lb
Number of people (indoor): 2

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Opt for a versatile, high-performance all-terrain lifting solution with the 160 ATJe 4x4 100% electric aerial work platform! Take advantage of its performance to optimize your operations on rough, uneven or muddy terrain or even indoors thanks to its zero emission energy. Its 4 steering wheels allow you to evolve in the most confined grounds.

Equipped with transmission decks, this Manitou model has all the features to facilitate your work at height:

spacious and resistant galvanized basket, important ground clearance, active oscillating axle, 4 driving wheels, 4 steering wheels, continuous rotation as an option, unique load capacity on the articulated boom lift market, 4 simultaneous movements...

The 160 ATJe 4WS articulated boom lift allows you to work safely up to 16 high, outdoors or indoors, thanks to the 100% electric motor and therefore without Co2 emissions. A plus: slinging without lifting beam, faster for your teams.

Specifications

Capacities
Working height	52 ft 7 in
Platform height	46 ft
Max. outreach	26 ft 7 in
Overhang	24 ft 5 in
Pendular arm rotation (left / right)	90 ° / 90 °
Pendular arm rotation (top / bottom)	+65 ° / -59.50 °
Platform capacity	551 lb
Turret rotation	350 °
Platform rotation (right / left)	90 ° / 90 °
Number of people (indoor / outdoor)	2 / 2
Weight and dimensions
Platform weight*	13713 lb
Platform dimensions (length x width)	6 ft 11 in x 2 ft 6 in
Overall length	21 ft 4 in
Overall width	7 ft 7 in
Overall height	7 ft 10 in
Overall length (stowed)	14 ft 8 in
Overall height (stowed)	9 ft 1 in
Counterweight offset (turret at 90Â°)	2 ft 9 in
Counterweight Oversize / Reach	10 in
External turning radius	12 ft 4 in
Ground clearance at centre of wheelbase	1 ft 2 in
Wheelbase	7 ft 7 in
Performances
Drive speed - stowed	3 mph
Drive speed - raised	0.43 mph
Gradeability	45 %
Permissible leveling	5 °
Wheels
Tires type	Foam-filled
Standard tires	834 x 298 mm
Drive wheels (front / rear)	2 / 2
Steering wheels (front / rear)	2 / 2
Braking wheels (front / rear)	0 / 2
Engine/Battery
Battery voltage	48 V
Battery nominal voltage / capacity	48 V / 480 Ah
Battery energy	23 kWh
On-board charger (V / A)	48 V / 60 A
Miscellaneous
Number of cycles with STD Battery (HIRD)	58
Ground Pressure	189 PSI
Hydraulic Pressure	3481 PSI
Hydraulic tank capacity	6 US gal
Sound pressure level (platform work station) (LpA)	70 dB
Vibration on hands/arms	< 8 ft/s²
Standards compliance
This machine is in compliance with:	ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
