Manitou ATJ 46+ e CR

Double tap to zoom

ATJ Aerial Work Platforms

ATJ 46+ e CR

Overview:

Maximum outreach: 27 ft 4 in
Overhang: 24 ft 5 in
Platform capacity: 899 lb
Number of people (indoor): 3

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

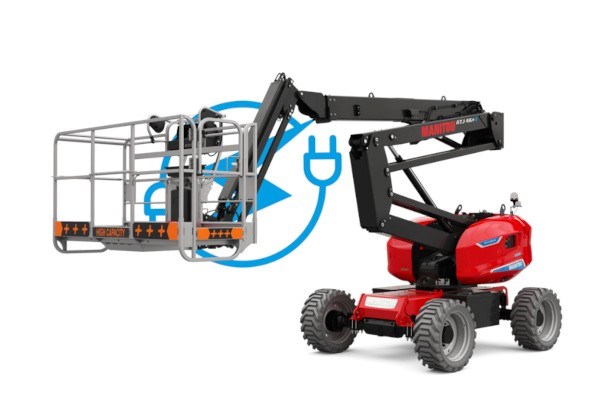

Opt for an ultra-performing and versatile all-terrain lifting solution with the ATJ 46+ e CR 4x4 100% articulated electric boom lift! Take advantage of its performance to optimize your operations on rough, uneven or muddy terrain or even indoors thanks to its zero emission energy. Its 4 steering wheels allow you to evolve in the most difficult terrains.

Equipped with transmission decks, this Manitou model has all the features to facilitate your work at height:

spacious and resistant basket, important ground clearance, active oscillating axle, 4 driving wheels, 4 steering wheels, continuous rotation as an option, important load capacity (408 kg), 4 simultaneous movements...

The ATJ 46+ e CR 4WS articulated aerial work platform allows you to work safely up to a height of 16, outdoors or indoors, thanks to the 100% electric motor and therefore without Co2 emissions. A plus: the slinging without lifting beam, faster for your teams.

Specifications

Capacities
Working height	53 ft 3 in
Floor height (access)	1 ft 5 in
Platform height	46 ft 9 in
Max. outreach	27 ft 4 in
Overhang	24 ft 5 in
Pendular arm rotation (left / right)	90 ° / 90 °
Pendular arm rotation (top / bottom)	+66.50 ° / -65.80 °
Platform capacity	899 lb
Turret rotation	360 °
Platform rotation (right / left)	90 ° / 90 °
Number of people (indoor / outdoor)	3 / 3
Weight and dimensions
Platform weight*	17174 lb
Platform dimensions (length x width)	7 ft 7 in x 2 ft 11 in
Overall length	22 ft 7 in
Overall width	7 ft 10 in
Overall height	8 ft 2 in
Overall length (stowed)	15 ft 5 in
Overall height (stowed)	9 ft 8 in
Counterweight offset (turret at 90Â°)	1 ft 3 in
Counterweight Oversize / Reach	1 ft 2 in
External turning radius	12 ft 5 in
Ground clearance at centre of wheelbase	1 ft 3 in
Wheelbase	7 ft 7 in
Performances
Drive speed - stowed	3 mph
Drive speed - raised	0.62 mph
Gradeability	45 %
Permissible leveling	5 °
Wheels
Tires type	Foam-filled
Standard tires	914 x 370 mm
Drive wheels (front / rear)	2 / 2
Steering wheels (front / rear)	2 / 2
Braking wheels (front / rear)	0 / 2
Engine/Battery
Battery voltage	48 V
Battery nominal voltage / capacity	48 V / 480 Ah
Battery energy	23 kWh
On-board charger (V / A)	48 V / 60 A
Miscellaneous
Ground Pressure	154 PSI
Hydraulic Pressure	3481 PSI
Hydraulic tank capacity	6 US gal
Noise to environment (LwA)	< 70 dB
Vibration on hands/arms	< 2.50 m/s²
Standards compliance
This machine is in compliance with:	ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
