Manitou ATJ 60 RC

Double tap to zoom

ATJ Aerial Work Platforms

ATJ 60 RC

Overview:

Maximum outreach: 39 ft 3 in
Overhang: 50 ft
Platform capacity: 500 lb
Number of people (indoor): 2

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

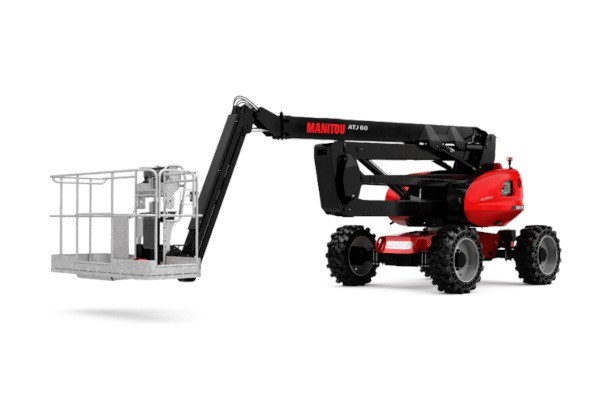

Looking for a compact, all-terrain MEWP solution? Then the ATJ 60 boom lift is the solution for you! With its 60 ft 2 in max platform height, articulated arm and 360 degree continuous rotation, it allows you the ability to work in the most remote and difficult to access areas. To ensure safety, the ATJ 60 has a smooth double basket, an operator presence pedal and a negative braking system. The design of the chassis is well-suited for off-road use, whatever the ground conditions, making the ATJ 60 an ideal aerial lift for all your outdoor work.

Specifications

Capacities
Working height	66 ft 10 in
Floor height (access)	1 ft 8 in
Platform height	60 ft 3 in
Max. outreach	39 ft 3 in
Overhang	50 ft
Pendular arm rotation (bottom)	+66 °
Platform capacity	500 lb
Turret rotation	360 °
Platform rotation (right / left)	90 ° / 90 °
Number of people (indoor / outdoor)	2 / 2
Weight and dimensions
Platform weight*	22267 lb
Platform dimensions (length x width)	6 ft 11 in x 2 ft 7 in
Overall length	27 ft 8 in
Overall width	7 ft 10 in
Overall height	8 ft 11 in
Overall length (stowed)	20 ft 5 in
Overall height (stowed)	9 ft 3 in
Counterweight offset (turret at 90Â°)	4 in
Counterweight Oversize / Reach	4 in
Internal turning radius / External turning radius	4 ft 2 in/12 ft 10 in
Ground clearance at centre of wheelbase	1 ft 5 in
Wheelbase	7 ft 10 in
Performances
Drive speed - stowed	3 mph
Drive speed - raised	0.62 mph
Gradeability	40 %
Wheels
Tires type	Solid Tires Cured-On
Standard tires	40 x 14 in / 1025 x 365 mm
Drive wheels (front / rear)	2 / 2
Steering wheels (front / rear)	2 / 2
Braking wheels (front / rear)	0 / 2
Engine/Battery
Engine brand / model	Kubota - D1803-CR-TIE4B
I.C. Engine power rating / Power	42.90 Hp / 32.80 kW
Miscellaneous
Ground Pressure	300 PSI
Hydraulic Pressure	4931 PSI
Hydraulic tank capacity	21 US gal
Fuel tank	21 US gal
Noise to environment (LwA)	< 102 dB
Vibration on hands/arms	< 0.50 m/s²
Standards compliance
This machine is in compliance with:	ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
