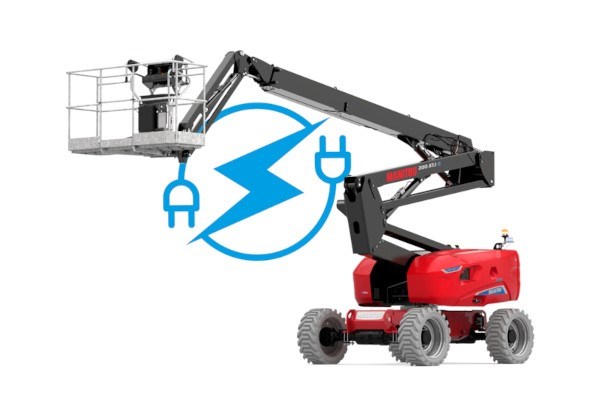

Manitou ATJ 60 e 4WS CR

Double tap to zoom

ATJ Aerial Work Platforms

ATJ 60 e 4WS CR

Overview:

Maximum outreach: 38 ft
Overhang: 25 ft 11 in
Platform capacity: 551 lb
Number of people (indoor): 2

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Opt for an ultra-efficient and versatile all-terrain lifting solution with the 100% electric ATJ 60 E 4WS CR platform! Take advantage of its performance to optimize your operations on rough, uneven or muddy terrain or even indoors thanks to its zero-emission energy. Its 4 steering wheels will allow you to move around in the tightest terrain and you will appreciate the time saved thanks to its continuous rotation!

Equipped transmission bridges, this Manitou boom lift has all the features to facilitate your work at height:

spacious and resistant galvanized basket, high ground clearance, active oscillating axle, 4 drive wheels, 4 steering wheels, continuous rotation, unique load capacity on the articulated boom lift market, 4 simultaneous movements...

The articulated ATJ 60 E 4WS CR electric MEWP allows you to work safely up to 65 ft 1 in in height (platform height of 59 ft 1 in), outdoor or indoor thanks to the 100% electric engine and operation without CO2 emissions.

Specifications

Capacities
Working height	65 ft 7 in
Floor height (access)	1 ft 6 in
Platform height	59 ft 1 in
Max. outreach	38 ft
Overhang	25 ft 11 in
Pendular arm rotation (top / bottom)	+65 ° / -60 °
Platform capacity	551 lb
Turret rotation	360 °
Platform rotation (right / left)	90 ° / 90 °
Number of people (indoor / outdoor)	2 / 2
Weight and dimensions
Platform weight*	16601 lb
Platform dimensions (length x width)	6 ft 11 in x 2 ft 6 in
Overall length	27 ft 4 in
Overall width	7 ft 10 in
Overall height	8 ft 1 in
Overall length (stowed)	19 ft 11 in
Overall height (stowed)	9 ft
Counterweight offset (turret at 90Â°)	2 ft
External turning radius	12 ft 5 in
Ground clearance at centre of wheelbase	1 ft 3 in
Wheelbase	7 ft 7 in
Performances
Drive speed - stowed	3 mph
Drive speed - raised	0.40 mph
Gradeability	40 %
Permissible leveling	4 °
Wheels
Tires type	Foam-filled
Standard tires	914 x 370 mm
Drive wheels (front / rear)	2 / 2
Steering wheels (front / rear)	2 / 2
Braking wheels (front / rear)	0 / 2
Engine/Battery
Battery voltage	48 V
Battery nominal voltage / capacity	48 V / 460 Ah
Battery energy	22 kWh
On-board charger (V / A)	48 V / 60 A
Miscellaneous
Ground Pressure	160 PSI
Hydraulic Pressure	3481 PSI
Hydraulic tank capacity	6 US gal
Noise to environment (LwA)	< 98 dB
Vibration on hands/arms	< 2.50 m/s²
Standards compliance
This machine is in compliance with:	ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
