MAN'GO Aerial Ladders

MAN'GO 33

Overview:

Maximum outreach: 21 ft 11 in
Steering wheels (front): 2
Platform capacity: 500 lb
Number of people (indoor): 2

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

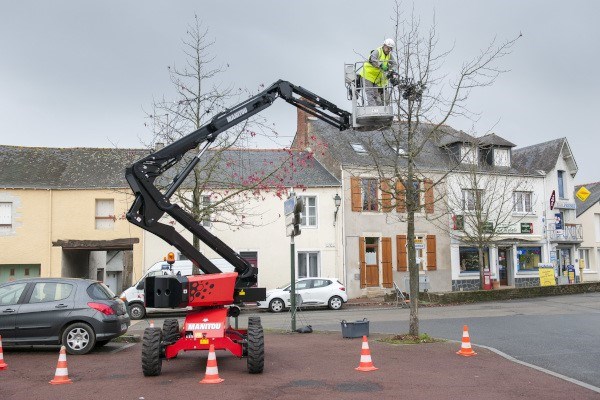

The MAN'GO 33 is one of the most compact aerial offroad solutions offering by Manitou. Light and handy, this unit helps achieve effective heights, nomatter the space contraints within the jobsite area. The MAN'GO 33 is distinguished by its high compactness, turret rotation of 350 degrees, and its quick lift arms. For your comfort and safety, the MAN'GO 33 boom lift is equipped with a galvanized platform. It also works well in all-terrain conditions thanks to its high ground clearnance and ability to operate in 4-wheel drive.

Specifications

Capacities
Working height	39 ft 1 in
Floor height (access)	1 ft 4 in
Platform height	32 ft 6 in
Max. outreach	21 ft 11 in
Overhang	15 ft 9 in
Pendular arm rotation (top / bottom)	+64 ° / -70 °
Platform capacity	500 lb
Turret rotation	350 °
Platform rotation (right / left)	70 ° / 66 °
Number of people (indoor / outdoor)	2 / 2
Weight and dimensions
Platform weight*	9149 lb
Platform dimensions (length x width)	4 ft 11 in x 3 ft 3 in
Overall length	18 ft 1 in
Overall width	5 ft 11 in
Overall height	6 ft 7 in
Overall length (stowed)	14 ft 9 in
Overall height (stowed)	8 ft 2 in
Jib length	4 ft 9 in
Counterweight Oversize / Reach	7 in
External turning radius	13 ft 6 in
Ground clearance at centre of wheelbase	1 ft 1 in
Wheelbase	6 ft 7 in
Performances
Drive speed - stowed	3 mph
Drive speed - raised	0.62 mph
Gradeability	45 %
Permissible leveling	4 °
Wheels
Tires type	Super Elastic Solid Cushion
Standard tires	28 x 10 in / 720 x 240 mm
Drive wheels (front / rear)	2 / 2
Steering wheels (front / rear)	2 / 0
Braking wheels (front / rear)	2 / 2
Engine/Battery
Engine brand / model	Kubota - D1105-E4B
Engine norm	Interim Tier 4, Stage IIIA, Stage V
I.C. Engine power rating / Power	24.80 Hp / 18.50 kW
Miscellaneous
Ground Pressure	218 PSI
Hydraulic Pressure	5802 PSI
Hydraulic tank capacity	16 US gal
Fuel tank	14 US gal
Vibration on hands/arms	< 0.76 m/s²
Daily consumption **	1 US gal
Standards compliance
This machine is in compliance with:	ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
