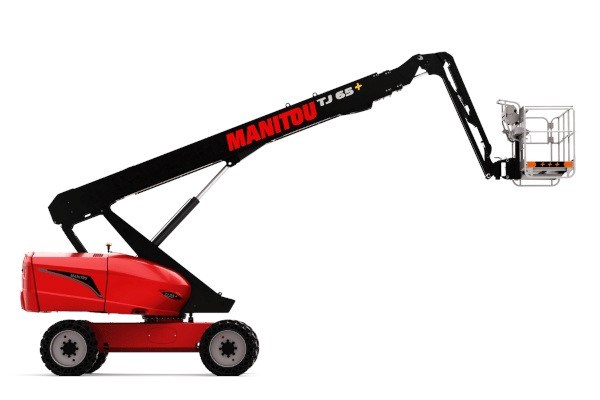

Manitou TJ 65+

Double tap to zoom

TJ Platforms

TJ 65+

Overview:

Maximum outreach: 58 ft 4 in
Steering wheels (front): 2
Platform capacity: 899 lb
Number of people (indoor): 3

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Optimize your "height" handling work with our Manitou telescopic mobile elevating work platforms! The TJ 65+ telescopic boom lift is designed to accommodate three operators, providing a platform capacity up to 899 lb. Along with this extra capacity, this model is also built with all the necessary features to facilitate your operations in high areas with difficult access: continuous 360 rotation, 3 driving modes (2/4 wheel or crab), durable chassis built for all-terrain, perforated platform floor, and transmission bridges. Take advantage of the exceptional performance of our MEWP line-up to improve your productivity and security of your crew on the jobsite.

Specifications

Capacities
Working height	71 ft 4 in
Floor height (access)	1 ft 3 in
Platform height	64 ft 9 in
Max. outreach	58 ft 4 in
Pendular arm rotation (top / bottom)	+70 ° / -63 °
Platform capacity	899 lb
Turret rotation	360 °
Platform rotation (right / left)	90 ° / 90 °
Number of people (indoor / outdoor)	3 / 3
Weight and dimensions
Platform weight*	29983 lb
Platform dimensions (length x width)	7 ft 7 in x 2 ft 11 in
Overall length	33 ft
Overall width	8 ft 2 in
Overall height	8 ft 9 in
Overall length (stowed)	24 ft 1 in
Overall height (stowed)	9 ft 11 in
Jib length	6 ft 7 in
Counterweight offset (turret at 90Â°)	4 ft 5 in
Counterweight Oversize / Reach	4 ft 5 in
Internal turning radius / External turning radius	7 ft 10 in/14 ft 5 in
Ground clearance at centre of wheelbase	1 ft 5 in
Wheelbase	9 ft 2 in
Performances
Drive speed - stowed	3 mph
Drive speed - raised	0.62 mph
Gradeability	40 %
Wheels
Tires type	Solid Tires Cured-On
Standard tires	40 x 14 in / 1025 x 365 mm
Drive wheels (front / rear)	2 / 2
Steering wheels (front / rear)	2 / 2
Braking wheels (front / rear)	2 / 2
Engine/Battery
Engine brand / model	Kubota - D1803-CR-TIE4B
I.C. Engine power rating / Power	49.60 Hp / 37 kW
Miscellaneous
Ground Pressure	265 PSI
Hydraulic Pressure	5802 PSI
Hydraulic tank capacity	25 US gal
Fuel tank	19 US gal
Vibration on hands/arms	< 0.50 m/s²
Standards compliance
This machine is in compliance with:	ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
