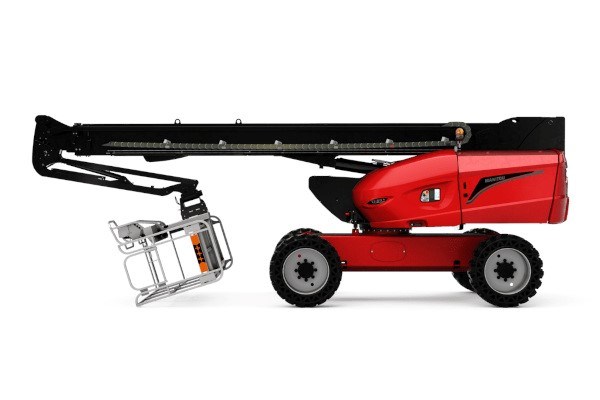

Manitou TJ 80+

Double tap to zoom

TJ Platforms

TJ 80+

Overview:

Maximum outreach: 4 ft 8 in
Steering wheels (front): 2
Platform capacity: 899 lb
Number of people (indoor): 3

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Take advantage of the performance of the TJ 80+ telescopic MEWP! This latest boom lift meets all your requirements in terms of off-road capability, strength, power and security. With the telescopic mast and compact structure of the machine, you can work easily in the tightest spaces. The advantages of the TJ 80+ make it an ideal lifting solution to work daily on the jobsite: robust design, continuous 360 degree rotation, 4 wheel steering, transmission bridges, extra platform capacity of 899 lb ... Optimize your work at height and improve productivity each day!

Specifications

Capacities
Working height	84 ft 11 in
Floor height (access)	1 ft 4 in
Platform height	78 ft 5 in
Max. outreach	64 ft 8 in
Pendular arm rotation (top / bottom)	+70 ° / -63 °
Platform capacity	899 lb
Turret rotation	360 °
Platform rotation (right / left)	90 ° / 90 °
Number of people (indoor / outdoor)	3 / 3
Weight and dimensions
Platform weight*	35946 lb
Platform dimensions (length x width)	7 ft 7 in x 2 ft 11 in
Overall length	35 ft 7 in
Overall width	8 ft 2 in
Overall height	8 ft 11 in
Overall length (stowed)	25 ft 10 in
Overall height (stowed)	9 ft 2 in
Jib length	7 ft 10 in
Counterweight offset (turret at 90Â°)	4 ft 8 in
Counterweight Oversize / Reach	4 ft 8 in
External turning radius	14 ft 3 in
Ground clearance at centre of wheelbase	1 ft 4 in
Wheelbase	9 ft 2 in
Performances
Drive speed - stowed	3 mph
Drive speed - raised	0.50 mph
Gradeability	37.50 %
Permissible leveling	4 °
Wheels
Tires type	Solid Tires Cured-On
Standard tires	40 x 14 in / 1025 x 365 mm
Drive wheels (front / rear)	2 / 2
Steering wheels (front / rear)	2 / 2
Braking wheels (front / rear)	2 / 2
Engine/Battery
Engine brand / model	Kubota - D1803-CR-TIE4B
Engine norm	Tier 4
I.C. Engine power rating / Power	49.60 Hp / 37 kW
Miscellaneous
Ground Pressure	309 PSI
Hydraulic Pressure	5802 PSI
Hydraulic tank capacity	25 US gal
Fuel tank	19 US gal
Vibration on hands/arms	< 0.50 m/s²
Standards compliance
This machine is in compliance with:	ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
