Manitou TJ 85

Double tap to zoom

TJ Platforms

TJ 85

Overview:

Maximum outreach: 70 ft 4 in
Steering wheels (front): 2
Platform capacity: 529 lb
Number of people (indoor): 2

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

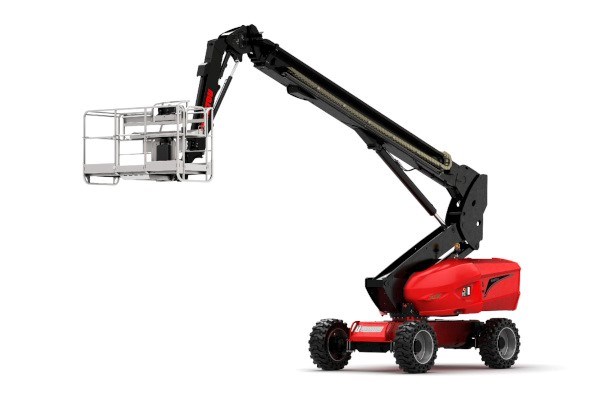

Take advantage of the innovative features of the TJ 85 telescopic boom lift everyday! This unit has a platform height of 84 ft 6 in making it an ideal choice to carry out your handling and maintenance operations in high to reach areas. The TJ 85 is able to accommodate 3 operators as it is equipped with a large workplatform, perforated floor, and a structure with the ability to pivot allowing for rapid movements. Its off-road capability makes it a lift solution that can go on all types of soils, including the roughest. Improve productivity, and work safely thanks to the performance of our latest generation telescopic workplatform.

Specifications

Capacities
Working height	91 ft
Floor height (access)	1 ft 7 in
Platform height	84 ft 5 in
Max. outreach	70 ft 4 in
Pendular arm rotation (top / bottom)	+56.80 ° / -62 °
Platform capacity / capacity (maximum)	529 lb / 772 lb
Turret rotation	360 °
Platform rotation (right / left)	90 ° / 90 °
Number of people (indoor / outdoor)	2 / 3
Weight and dimensions
Platform weight*	36350 lb
Platform dimensions (length x width)	7 ft 7 in x 2 ft 11 in
Overall length	37 ft 3 in
Overall width	8 ft 2 in
Overall height	8 ft 11 in
Overall length (stowed)	26 ft 7 in
Overall height (stowed)	8 ft 11 in
Jib length	12 ft 6 in
Counterweight offset (turret at 90Â°)	4 ft 8 in
Counterweight Oversize / Reach	4 ft 9 in
External turning radius	14 ft 3 in
Ground clearance at centre of wheelbase	1 ft 4 in
Wheelbase	9 ft 2 in
Performances
Drive speed - stowed	3 mph
Drive speed - raised	0.50 mph
Gradeability	37.50 %
Wheels
Tires type	Solid Tires Cured-On
Standard tires	40 x 14 in / 1025 x 365 mm
Drive wheels (front / rear)	2 / 2
Steering wheels (front / rear)	2 / 2
Braking wheels (front / rear)	2 / 2
Engine/Battery
Engine brand / model	Kubota - D1803-CR-TIE4B
I.C. Engine power rating / Power	49.60 Hp / 37 kW
Miscellaneous
Ground Pressure	309 PSI
Hydraulic Pressure	5802 PSI
Hydraulic tank capacity	25 US gal
Fuel tank	19 US gal
Sound level at platform	0.50 dB
Noise to environment (LwA)	< 102 dB
Vibration on hands/arms	< 0.50 m/s²
Standards compliance
This machine is in compliance with:	ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
