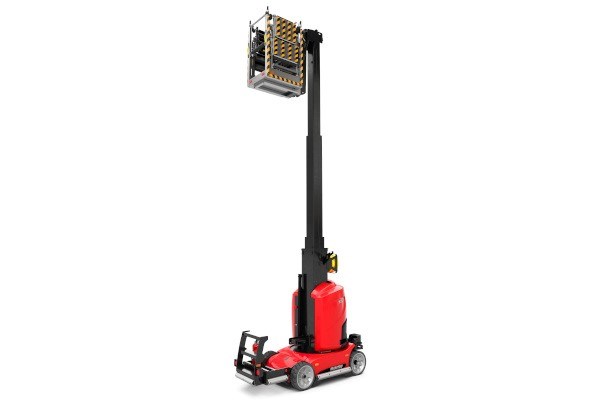

Manitou V'Air 23

Double tap to zoom

VJR Aerial Platforms

V'Air 23

Overview:

Maximum outreach: 6 ft 8 in
Platform capacity: 507 lb
Number of people (indoor): 2
Gradeability: 25 %

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Looking for a handling solution to work at heights in very tight spaces for the aeronautics industry? Check out the performance of the V'Air 23 mast lift! Equipped with a telescopic mast, this model offers a maximum working height of 29 ft 6 in: ideal to operate in the most remote areas safely. The telescopic mast technology provides stronger visibility on the machine and your surroundings during travel, in a very compact package. This aerial platform allows you to perform your maintenance operations with comfort and precision.

Specifications

Capacities
Floor height (access)	3 ft 5 in
Platform height	23 ft
Max. outreach	6 ft 8 in
Platform capacity	507 lb
Turret rotation	355 °
Number of people (indoor / outdoor)	2 / 2
Weight and dimensions
Platform weight*	5975 lb
Platform dimensions (length x width)	3 ft 1 in x 2 ft 3 in
Overall length	7 ft 7 in
Overall width	3 ft 7 in
Overall height	7 ft 7 in
Counterweight offset (turret at 90Â°)	2 in
Counterweight Oversize / Reach	2 in
External turning radius	6 ft 6 in
Ground clearance at centre of wheelbase	2 ft 11 in
Wheelbase	3 ft 11 in
Performances
Drive speed - stowed	3 mph
Drive speed - raised	0.37 mph
Gradeability	25 %
Permissible leveling	2 °
Wheels
Tires type	Non marking
Standard tires	16.5-11 1/4 / 406 x 127 mm
Drive wheels (front / rear)	0 / 2
Steering wheels (front / rear)	2 / 0
Braking wheels (front / rear)	0 / 2
Engine/Battery
Electric engine power rating	2 x 1.50 kW
Number of hydraulic pump / Capacity of hydraulic pump	2 x 0.26 in³
Battery voltage	24 V
Battery capacity	250 Ah
On-board charger (V / A)	24 V / 30 A
Miscellaneous
Number of cycles with STD Battery (HIRD)	39
Ground Pressure	164 PSI
Hydraulic Pressure	2031 PSI
Hydraulic tank capacity	6 US gal
Standards compliance
This machine is in compliance with:	ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
