Manitou MRT 2260

Double tap to zoom

MRT Vision+

MRT 2260

Overview:

Max. lifting height: 71 ft 6 in
Max. capacity: 13228 lb
Max. outreach: 59 ft 9 in
Engine power (kW): 115 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

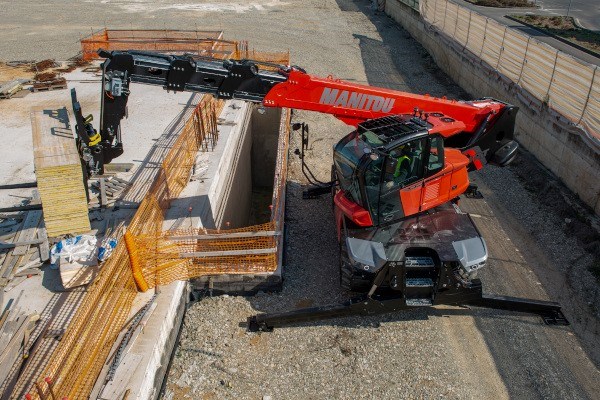

The MRT 2260 is a powerful all-terrain rotating telescopic handler. This 3-in-1 machine is a telescopic handler, winch and aerial work platform with a multitude of compatible attachments for versatility and performance on your construction and industrial sites. 360° rotation of the turret and its exceptional cab visibility allows you to perform operations more easily without having to move the machine. The pentagonal section of the boom allows for precise movement and stability of the machine with automatic leveling of the stabilizers. Equipped with smart features for optimum handling and safety, the MRT 2260 is the tool you won't want to do without!

Specifications

Capacities
Max. capacity	13228 lb
Max. lifting height	71 ft 6 in
Max. outreach	59 ft 9 in
Weight and dimensions
Overall length (with forks)	26 ft 10 in
Length to face of forks	22 ft 10 in
Overall width	8 ft 2 in
Overall height	10 ft 2 in
Overall cab width	3 ft 2 in
Ground clearance	1 ft 3 in
Wheelbase	10 ft
Tilt-up angle	12 °
Tilt-down angle	110 °
Turret rotation	360 °
Overall weight	39683 lb
Forks length / width / section	47 in x 4 in x 2 in
Wheels
Standard tires	445/65 R22,5
Drive wheels (front / rear)	2 / 2
Steering mode	2 wheel steer, 4 wheel steer, Crab mode
Stabilisers
Stabs Type	Telescopic Duplex
Controls with stabs	Stabs Commands Individual or Simultaneous
Engine
Engine brand	Yanmar
Engine norm	Stage V / Tier 4
Engine model	4TN107FHT-6SMU1
I.C. Engine power rating / Power	156 Hp / 115 kW
Max. torque / Engine rotation (min)	444 ft/lbs @ 1500 rpm
Number of cylinders - Capacity of cylinders	4 - 279 in³
Engine cooling system	Water cooled
Electric circuit
Number of batteries / Battery voltage	2 x 12 V
12V Battery capacity	120 Ah
Battery starting current	(EN)850 A
Transmission
Transmission type	Hydrostatic
Gearbox / Number of gears (forward) / Number of gears (reverse)	Speedshift / 2 / 2
Max. travel speed	25 mph
Drawbar pull	8600 daN
Parking brake	Automatic negative parking brake
Service brake	Oil-immersed multi-discs braking on front & rear axles
Performances
Gradeability (laden / unladen)	40.40 % / 45.50 %
Hydraulics
Hydraulic pump type	Variable displacement pump
Hydraulic flow	49 US gpm
Hydraulic Pressure	5076 PSI
Tank capacities
Engine oil	3 US gal
Fuel tank	71 US gal
Diesel Exhaust fluid (AdBlueÂ® type)	6 US gal
Noise and vibration
Noise at driving position (LpA)	68 dB
Noise to environment (LwA)	108 dB
Vibration on hands/arms	< 2.50 m/s²
Miscellaneous
Steering wheels (front / rear)	2 / 2
Controls	2 Joysticks
Safety cab homologation	Cabin ROPS - FOPS level 2
Attachment recognition system (E-Reco)	Standard
