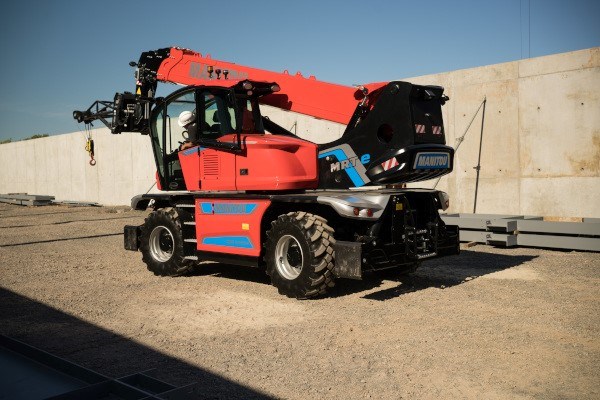

Manitou MRT 2260 e

Double tap to zoom

MRT Vision+

MRT 2260 e

Overview:

Max. lifting height: 71 ft 6 in
Max. capacity: 13228 lb
Max. outreach: 59 ft 9 in
Power source: Electrical - Lithium

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

100% electric. MRT 2260 E is truly a versatile tool for your handling operations with zero emission, low noise level and fuel reduced consumption.

6 000 kg max capacity, 22m of lifting height. Lithium-ion battery, ensure : low maintenance, possibility of opportunity charge (partial and frequent recharging of the battery) and long lifespan.

Modular project : possibility to add a 2nd battery to gain autonomy or a range extender (heat engine that recharges the battery) in hybrid mode. All the advantages of the MRT Vision + (visibility, performance, comfort) in 100% electric.

Specifications

Capacities
Max. capacity	13228 lb
Max. lifting height	71 ft 6 in
Max. outreach	59 ft 9 in
Weight and dimensions
Overall length (with forks)	26 ft 10 in
Length to face of forks	22 ft 10 in
Overall width	8 ft 2 in
Overall height	10 ft 2 in
Overall cab width	3 ft 2 in
Ground clearance	1 ft 3 in
Wheelbase	10 ft
Tilt-up angle	12 °
Tilt-down angle	110 °
Turret rotation	360 °
Overall weight	39683 lb
Forks length / width / section	4 in x 47 in x 2 in
Wheels
Standard tires	445/65 R22,5
Drive wheels (front / rear)	2 / 2
Steering mode	2 wheel steer, 4 wheel steer, Crab mode
Stabilisers
Stabs Type	Telescopic Duplex
Controls with stabs	Stabs Commands Individual or Simultaneous
Electric circuit
Number of batteries / Battery voltage	2 x 12 V
12V Battery capacity	120 Ah
Battery starting current	(EN)850 A
Engine/Battery
Battery technology	Lithium-ion
Battery capacity	105 Ah
Battery nominal voltage	624 V
Battery max. voltage	680 V
Battery energy	65 kWh
Electric engine power rating	107 kW
Hydraulic motor power	84 kW
On-board Charger Power / Phase / Current	11 kW / Single-phase or three-phase / AC
Transmission
Transmission type	Electrical
Number of gears (forward / reverse)	2 / 2
Max. travel speed	23 mph
Drawbar pull	8600 daN
Drawbar pull continuous	4300 daN
Parking brake	Automatic negative parking brake
Service brake	Oil-immersed multi-discs braking on front & rear axles
Performances
Max Gradeability (laden / unladen)	36 % / 48 %
Gradeability continuous (laden / unladen)	18 % / 23 %
Hydraulics
Hydraulic pump type	Fixed displacement piston
Hydraulic flow	46 US gpm
Hydraulic Pressure	5076 PSI
Hydraulic tank capacity	53 US gal
Noise and vibration
Noise at driving position (LpA)	65 dB
Noise to environment (LwA)	103 dB
Vibration on hands/arms	< 2.50 m/s²
Miscellaneous
Steering wheels (front / rear)	2 / 2
Controls	2 Joysticks
Safety cab homologation	Cabin ROPS - FOPS level 2
Attachment recognition system (E-Reco)	Standard
