Manitou MRT 3570

Double tap to zoom

MRT Vision+

MRT 3570

Overview:

Max. lifting height: 113 ft 10 in
Max. capacity: 15432 lb
Max. outreach: 91 ft 10 in
Engine power (kW): 155 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

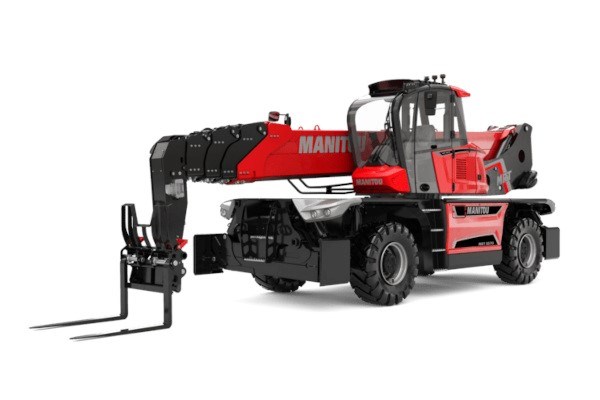

The MRT 3570 is a powerful all-terrain rotating telescopic handler. This 3-in-1 machine is a telescopic handler, winch and aerial work platform with a multitude of compatible attachments for versatility and performance on your construction and industrial sites. 360° rotation of the turret and its exceptional cab visibility allows you to perform operations more easily without having to move the machine. The pentagonal section of the boom allows for precise movement and stability of the machine with automatic leveling of the stabilizers. Equipped with smart features for optimum handling and safety, the MRT 3570 is the tool you won't want to do without!

Specifications

Capacities
Max. capacity	15432 lb
Max. lifting height	113 ft 10 in
Max. outreach	91 ft 10 in
Weight and dimensions
Overall length (with forks)	33 ft
Length to face of forks	29 ft 1 in
Overall width	8 ft 2 in
Overall height	10 ft 8 in
Overall cab width	3 ft 2 in
Ground clearance	1 ft 2 in
Wheelbase	12 ft 4 in
Tilt-up angle	13 °
Tilt-down angle	108 °
Turret rotation	360 °
Overall weight	52470 lb
Forks length / width / section	47 in x 5 in x 2 in
Wheels
Standard tires	17,5-R25
Drive wheels (front / rear)	2 / 2
Steering mode	2 wheel steer, 4 wheel steer, Crab mode
Stabilisers
Stabs Type	Telescopic Triplex
Controls with stabs	Stabs Commands Individual or Simultaneous
Engine
Engine brand	Yanmar
Engine norm	Stage V / Tier 4
Engine model	4TN107FTT-6SMU2
I.C. Engine power rating / Power	211 Hp / 155 kW
Max. torque / Engine rotation (min)	594 ft/lbs @ 1500 rpm
Number of cylinders - Capacity of cylinders	4 - 279 in³
Engine cooling system	Water cooled
Electric circuit
Number of batteries / Battery voltage	2 x 12 V
12V Battery capacity	120 Ah
Battery starting current	(EN)850 A
Transmission
Transmission type	Hydrostatic with CVT
Gearbox	Speedshift
Max. travel speed	25 mph
Drawbar pull	9300 daN
Parking brake	Automatic negative parking brake
Service brake	Oil-immersed multi-discs braking on front & rear axles
Performances
Gradeability (laden / unladen)	29 % / 38.70 %
Hydraulics
Hydraulic pump type	Variable displacement pump
Hydraulic flow	49 US gpm
Hydraulic Pressure	5076 PSI
Tank capacities
Engine oil	3 US gal
Fuel tank	85 US gal
Diesel Exhaust fluid (AdBlueÂ® type)	6 US gal
Noise and vibration
Noise at driving position (LpA)	68 dB
Noise to environment (LwA)	109 dB
Vibration on hands/arms	< 2.50 m/s²
Miscellaneous
Steering wheels (front / rear)	2 / 2
Controls	2 Joysticks
Safety cab homologation	Cabin ROPS - FOPS level 2
Attachment recognition system (E-Reco)	Standard
