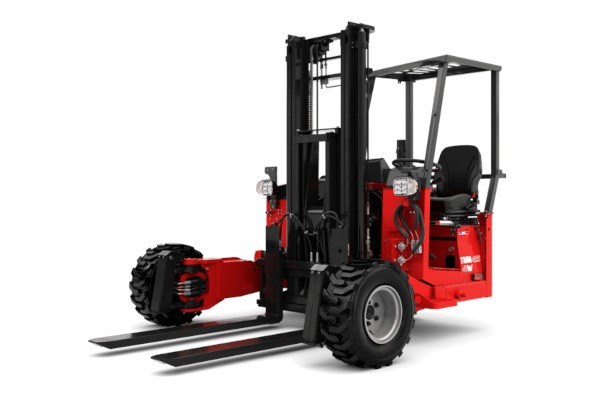

Manitou TMM 45 4W K ST5

Double tap to zoom

TMM

TMM 45 4W K ST5

Overview:

Max. lifting height: 118 in
Max. capacity: 4409 lb
Power source: Diesel
Service weight: 5401 lb

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The TMM 45 is an on-board industrial truck that allows transporters to be completely autonomous during their deliveries and loading in semi-urban areas.
Compact and light, it can be easily attached to the truck and can be adapted to all attachment kits on the market.
Its high lifting height of up to 3.9 m, the lateral displacement of its mast and its 3 driving wheels make the TMM 45, this industrial truck, efficient and easy to handle on all types of grounds.
For a better stability and a greater comfort of work, this industrial truck is equipped with stabilizers, a control to change the direction of travel and a mixed pedal inching/braking to adjust the speed in all circumstances.

Specifications

Technical characteristics
Manufacturer	MANITOU
Model Name	TMM 45 4W K ST5
Reach out equipment	Pantograph
Power source	Diesel
Operator type	Seated
Max. capacity	4409 lb
Load center of gravity	20 in
Load distance, centre of drive axle to fork	19 in
Wheelbase	63 in
Weight
Service weight	5401 lb
Weight on front axle (laden) / rear axle (laden)	7011 lb / 2800 lb
Weight on front axle (Unladen) / rear axle (Unladen)	2601 lb / 2800 lb
Wheels
Tires type	Pneumatic
Dimensions of front wheels	27x10-12 IC30
Dimensions of rear wheels	27x10-12 IC30
Number of front wheels / rear wheels	2 / 1
Front wheel gauge	84 in
Dimensions
Max. lifting height	199 in
Height of overhead guard (cabin)	83 in
Seat height/stand height	42 in
Overall length	104 in
Overall width	94 in
Forks section / width / length	2 in x 5 in x 47 in
Fork carriage ISO 2328 (class/form) A/B	2A
Fork carriage width	50 in
Distance between support arms	46 in
Distance between wheel arms/loading surfaces	59 in
Maximum horizontal extension at COG 600	39 in
Ground clearance at centre of wheelbase	11 in
Aisle width for 800 x 1200 pallet lengthways	132 in
Turning radius	97 in
Performances
Travel speed (laden / unladen)	7 mph - 7 mph
Lifting speed (laden / unladen)	0.85 ft/s / 0.79 ft/s
Lowering speed (laden / unladen)	1 ft/s / 0.79 ft/s
Gradeability (laden / unladen)	47 % / 48 %
Acceleration time (laden / unladen)	4.10 s / 2.60 s
Service brake	Hydraulic brakes by loss of pressure
Transmission type	Hydrostatic
Engine
Engine brand / norm	Kubota - Stage V
I.C. Engine power rating	18.50 kW
Rated speed	3000 rpm
Number of cylinders / Capacity of cylinders	3 - 69 in³
Miscellaneous
Type of drive control	Cable
Working hydraulic pressure for attachments	2756 PSI
Oil flow rate for attachments	11 US gpm
Sound level at the driver's ear according to DIN 12 053	84 dB
