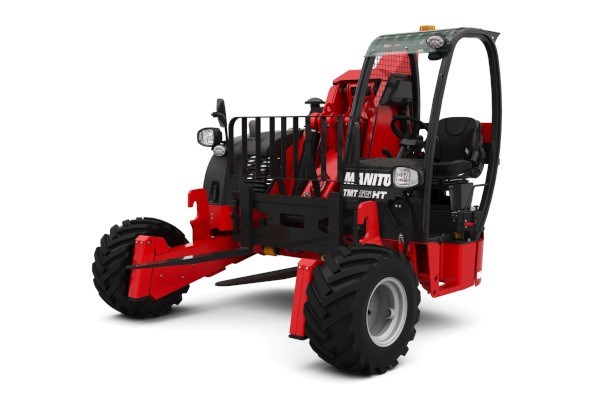

Manitou TMT 55 XT Y ST5

Double tap to zoom

TMT

TMT 55 XT Y ST5

Overview:

Max. lifting height: 135 in
Max. capacity: 5512 lb
Power source: Diesel
Service weight: 6085 lb

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Are you after an all-terrain truck-mounted forklift to use to load and unload lorries? The TMT 55 XT was designed by Manitou to make life easier for logistics professionals especially for those times when a loading/unloading bay is not available. It's particularly valuable in the construction sector, as you can deliver materials at the end of an unpaved path. Built to last, the TMT 55 XT features robust components for ease of upkeep. Payload is kept at a minimum for maximum cost effectiveness. Extremely stable, you can load and unload lorries from a single side, which is quite handy when you have to park alongside a wall or on the side of the road.

Specifications

Technical characteristics
Manufacturer	Manitou
Model Name	TMT 55 XT Y ST5
Reach out equipment	Telescopic boom
Power source	Diesel
Operator type	Seated
Max. capacity	5512 lb
Load center of gravity	24 in
Load distance, centre of drive axle to fork	-20 in
Wheelbase	65 in
Weight
Service weight	6085 lb
Wheels
Tires type	Pneumatic
Dimensions of front wheels	31 x 15,5 - 15"
Dimensions of rear wheels	31 x 15,5 - 15"
Number of front wheels / rear wheels	2 / 1
Drive wheels (front / rear)	2 / 1
Front wheel gauge	86 in
Dimensions
Mast/fork carriage tilt, forward	100 °
Mast/fork carriage tilt, backward	12 °
Height telescopic boom lowered	89 in
Mast free lift	57 in
Max. lifting height	135 in
Height telescopic boom extended	155 in
Height of overhead guard (cabin)	93 in
Seat height/stand height	55 in
Overall length	111 in
Length to face of forks	63 in
Overall width	101 in
Forks section / width / length	2 in x 4 in x 48 in
Fork carriage ISO 2328 (class/form) A/B	FEM 2A
Fork carriage width	50 in
Distance between support arms	49 in
Distance between wheel arms/loading surfaces	60 in
Ground clearance at centre of wheelbase	16 in
Aisle Width for pallets 1000 x 1200 crossways	79 in
Aisle width for 800 x 1200 pallet lengthways	75 in
Turning radius	118 in
Performances
Lifting speed (laden / unladen)	0.82 ft/s / 0.89 ft/s
Lowering speed (laden / unladen)	0.95 ft/s / 1 ft/s
Service brake	Hydraulic brakes by loss of pressure
Engine
Engine brand / norm	Yanmar - Stage V
I.C. Engine power rating	31 kW
Rated speed	2800 rpm
Number of cylinders / Capacity of cylinders	3 - 96 in³
Miscellaneous
Type of drive control	Mechanical
Working hydraulic pressure for attachments	3916 PSI
Oil flow rate for attachments	12 US gpm
Measured/guaranteed mean noise level at the ear of the operator	105 dB
