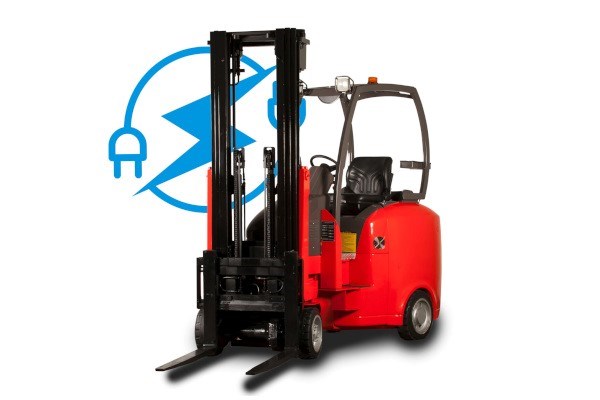

Manitou EMA II 18 HL-1

Double tap to zoom

Warehousing

EMA II 18 HL-1

Overview:

Max. capacity: 3858 lb
Load center of gravity: 20 in
Max. lifting height: 416 in
Overall width: 49 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The EMA II 18 HL-1 is an articulated forklift designed for use in warehouses looking to store goods at height. It has an excellent maximum lift of 11 m for optimum use of storage space, and is also suited to outdoor handling tasks with its high quality soft rubber tyres and generous ground clearance, so you can save time and money by not having to worry about double handling.The EMA II 18 HL-1 also shows efficiency and operator safety go hand-in-hand, as the overhead guard is supported by 4 uprights and also features a tilting apron for maximum safety when handling loads at greater heights.

Specifications

Technical characteristics
Manufacturer	Manitou
Model Name	EMA II 18 HL-1
Power source	Electrical - Lead
Operator type	Seated
Max. capacity	3858 lb
Max. capacity	3858 lb
Load center of gravity	20 in
Load distance, centre of drive axle to fork	12 in
Wheelbase	69 in
Weight
Service weight	15212 lb
Weight on front axle (laden) / rear axle (laden)	9259 lb / 9921 lb
Weight on front axle (Unladen) / rear axle (Unladen)	4850 lb / 10362 lb
Wheels
Tires type	Solid tires
Dimensions of front wheels	412 x 178
Dimensions of rear wheels	457 x 178
Number of front wheels / rear wheels	2 / 2
Number of drive wheels	2
Front wheel gauge	44 in
Rear wheel gauge	49 in
Dimensions
Height of overhead guard (cabin)	89 in
Seat height/stand height	47 in
Overall length	147 in
Length to face of forks	102 in
Overall width	49 in
Forks section / width / length	2 in x 5 in x 45 in
Fork carriage ISO 2328 (class/form) A/B	2
Fork carriage width	34 in
Ground clearance below mast	2 in
Ground clearance at centre of wheelbase	5 in
Aisle Width for pallets 1000 x 1200 crossways	77 in
Aisle width for 800 x 1200 pallet lengthways	87 in
Performances
Travel speed (laden / unladen)	6 mph / 6 mph
Lifting speed (laden / unladen)	1 ft/s-1 ft/s
Lowering speed (laden / unladen)	1 ft/s-1 ft/s
Gradeability (laden / unladen)	8 % / 10.50 %
Service brake	Hydraulic
Engine
Drive motor rating S2 60 min	10 kW
Lift motor rating at S3 15%	9 kW
Battery according to DIN 43531/35/36 A, B, C	DIN 43595
Battery voltage / capacity	48 V / 775 Ah
Battery weight (+/- 5%)	3164 lb
Miscellaneous
Type of drive control	Mosfet AC speed controller
Working hydraulic pressure for attachments	2901 PSI
Oil flow rate for attachments	7 US gpm
Measured/guaranteed mean noise level at the ear of the operator	< 73 dB
Sound level at the driver's ear according to DIN 12 053	73 dB
