HFX2800 Tandem Trailer / High Floation - Suspension Axle - 28 Ton
Overview:

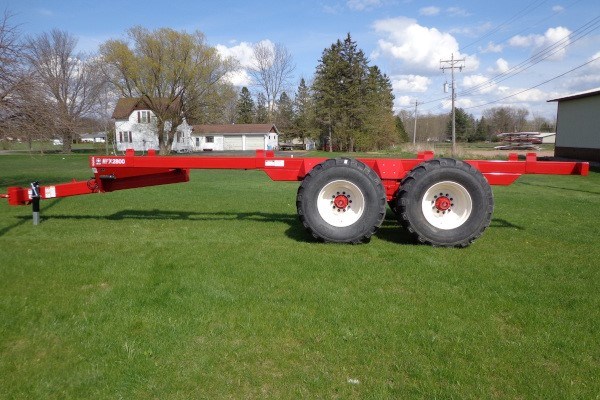

The Meyer HFX2800 Tandem Suspension Trailer features a Heavy Duty tubular frame with 28 ton capacity. It is specifically designed for faster road speeds of today's modern ag tractor. It is also better suited for long hauls from the field to the farm compared to traditional ag trailers. High Clearance Suspension axles, oil bath hubs, articulating implement hitch are standard equipment! This unit is specially designed to accommodate our 9130RT BOSS silage box but can be used for other applications.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- High Flotation
The drive behind the NEW HXF2800 was to build a affordable tandem cart with High Flotation Characteristics. Additional clearance allows Meyer to incorporate larger radial tires to minimize ground compaction and maximize performance in the field! - HD Tubular Frame
Meyer HFX Trailers feature a 4x8" tubular base frame. This trailer was designed to handle the load from our popular 9130RT BOSS (30') rear unload forage box but could have a variety of applications on your operation. 28 ton capacity! - Perfect Balance
The HFX2800 High Flotation Chassis provides the perfect balance for Maximum Flotation and Control. You will maintain approximately a 10% load on the tractor draw-bar. The Chassis frame is engineered to accommodate a direct mount or weigh bar mount system for scale applications. - Robust Hitch Assembly
This massive 6x10 Hitch assembly offers maximum strength for the HFX (1/2" wall!). - Hitch System
This HD hitch system handles the load. It is designed with vertical hitch adjustment to match your draw-bar height, comes standard with a strong side crank jack / jack storage and provides plenty of tire clearance for today's high horsepower tractors. - Tandem Spring-Suspended Axles Standard
This wide-profile suspension axles provide stable, smooth transport of your load. Wide axle widths give Meyer the ability to run zero offset wheels for added strength! - Oil Bath Hubs
All HFX2800 trailers have 10 bolt, oil bath hubs for maximum lubrication and minimum heat build-up! - Tire Options
HFX Tandem Trailers offer factory 710/50x26.5 radial flotation and will accommodate up to an 800/40x26.5 tire. - Brake Options
HFX Suspension Trailers come standard with brakes installed on the axles. It is however necessary to order a brake actuator package if you would like functioning brakes (hydraulic hand lever or foot pedal systems available). - Adjustable, Articulating Implement hitch is standard equipment on HFX models
This Articulating Implement Hitch is a HD cast design and features a ball swivel to match terrain changes. It will accommodate a 1.5" or 2" pin and does require a hammer strap tractor draw-bar. - Scale Packages
Scale Packages are available in conjunction with a forage box installation. The weigh bars would mount between the chassis and the forage box frame in this suspension trailer application.
Specifications
| Model | HFX28-336 |
| Style | Tandem w/ suspension |
| Suspension | Leaf Spring |
| Capacity (Trailer & Load) | 56,000# |
| Tread Width | 98" w/710/50x26.5 |
| Axle Configuration | Tandem - non steer 25,000# x 2- High Speed |
| Heavy Duty Hubs | 10 Bolt - Oil bath |
| Max Speed (Depends on Tires) | 40 mph |
| Frame Design | 4x8 Tubular |
| Bed Width | 34.5" |
| Stake Spacing | 33.5" Std |
| Bed Height | 53 1/2" w/710/50x26.5 |
| Overall Width w/600/50x22.5 | 128" |
| Overall Length | 35' 4" |
| Bed Length | 28' |
| Hitch and Hitch Supports | Extra Heavy Duty |
| Adj. Swivel Clevis Hitch | N/A |
| Articulating Ag. Hitch | Standard |
| Weight- Approx. | 8,160# w/710/50x26.5 |
| Options | |
| Tires | 710/50 x 26.5 Radials |
| Brakes | Hydraulic Manual Hydraulic Foot Pedal |
| Saftey Chain | Optional |
