Chassis / Tandem
XTH2200+ Tandem Trailer / Oscillating Axles 22 Ton
Overview:

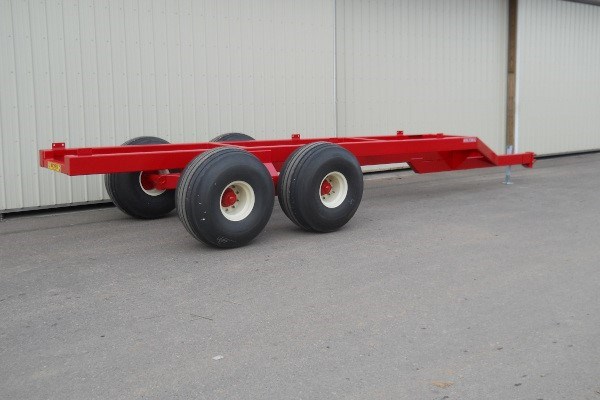

The Meyer XTH2200+ Tandem Chassis features a Heavy Duty tubular frame with 22 ton capacity. Robust oscillating axles, 3 1/2" spindles and 10 bolt Ag Hubs. The XTH Trailer Chassis from Meyer sets the standard for strength, traction and manuverabilty weather you mate it with a forage box or other application. The XTH2200+ is generally used on forages boxes from 20' - 26' in length but is also used for other applications.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- XT2200+ Series Upgraded!
The new "Plus" Series XT Tandem Trailer received a host of upgrades to the hitch frame and axle clearance areas. - HD Tubular Frame
Meyer XT2200+ Series Trailers feature a 4x8 tubular base frame in 4 different lengths to accomodate all your applications. Typically used for forage boxes from 20 - 26' of load space plus other applications! - Robust Hitch Assemblies
Meyer XT2200+ trailers feature a stout 6x8" tubular hitch to handle heavy loads! Notice it is reinforced at all critical stress points. - Oscillating Tandem Beams
These sturdy oscillating wings contain massive, greasable pivot bushings. 3 1/2" spindles and 15,000# / 10 bolt hubs are standard! - Tire Options (550/45x22.5 pictured)
Tire options include: 550/45x22.5 bar tires, 600/50x22.5* bar tires, 425/65x22.5 used truck tires
*600 tires require special riser - HD Clevis Hitch
This clevis hitch is standard equipment of the XT Series trailer. - Optional Swivel Hitch
Check out our optional swivel hitch for uneven terrain! - Optional Articulating Implement Hitch
The ultimate hitch - this optional cast hitch requires a hammerstrap tractor drawbar. It features a pivoting ball and adjustments for 1.5" or 2" pin. - Brake packes / XT Series
XT2200+ Series Trailers are available with hydraulic brakes which can be controlled with hydraulic remote valves or foot pedal controller if your tractor is equipped. Meyer also offers a surge brake package for this model. - Scale Option
XT2200+ Tandem Trailers have a 5 point scale system as an option.
Specifications
| Model | XTH2200 216 | XTH2200 240 | XTH2200 264 | XTH2200 280 |
| Style | Tandem O-Beam | Tandem O-Beam | Tandem O-Beam | Tandem O-Beam |
| Capacity Trailer & Load | 44,000 lbs. | 44,000 lbs. | 44,000 lbs. | 44,000 lbs. |
| Tread Width | 91.1" w/600/50x22.5 87.3" w/425/65x22.5 |
91.1" w/600/50x22.5 87.3" w/425/65x22.5 |
91.1"" w/600/50x22.5 87.3"" w/425/65x22.5" |
91.1"" w/600/50x22.5 87.3"" w/425/65x22.5" |
| Spindle Size | 3.5" | 3.5" | 3.5" | 3.5" |
| Axle Configurantion | Tandem O-Beam | Tandem O-Beam | Tandem O-Beam | Tandem O-Beam |
| Heavy Duty Hubs | 10 Bolt 15,000# at 10 MPH | 10 Bolt 15,000# at 10 MPH | 10 Bolt 15,000# at 10 MPH | 10 Bolt 15,000# at 10 MPH |
| Frame Design | 4x8x1/4" Tubing | 4x8x1/4" Tubing | 4x8x1/4" Tubing | 4x8x1/4" Tubing |
| Weight | 3940# w/600/50x22.5 | 4,070# w/600/50x22.5 | 4,210# w/600/50x22.5 | 5,010# w/600/50x22.5 |
| Overall Length | 25' 5.5" | 27' 5.5" | 30' 5.5" | 31' 7" |
| Bed Length | 18' | 20' | 22' | 23' 4" |
| Overall Width | 108.8" w/550/45x22.5 115.7" w/600/50x22.5 |
108.8"" w/550/45x22.5 115.7"" w/600/50x22.5" |
108.8"" w/550/45x22.5 115.7"" w/600/50x22.5" |
108.8"" w/550/45x22.5 115.7"" w/600/50x22.5" |
| Bed Width | 42" | 42" | 42" | 42" |
| Stake Spacing | 33.5" Std 42" Opt | 33.5" Std 42" Opt | 33.5" Std 42" Opt | 33.5" Std 42" Opt |
| Bed Height | 45.6"" w/550/45x22.5 47"" w/600/50x22.5" |
45.6"" w/550/45x22.5 47"" w/600/50x22.5" |
45.6"" w/550/45x22.5 47"" w/600/50x22.5" |
45.6"" w/550/45x22.5 47"" w/600/50x22.5" |
| Adj. Clevis Hitch | Standard | Standard | Standard | Standard |
| Adj. Swivel Clevis Hitch | Optional | Optional | Optional | Optional |
| Articulating Imp Hitch 1.5" or 2" Hammerstrap Hitch Req. | Optional | Optional | Optional | Optional |
| Brakes | Hydraulic Surge Hydraulic Manual Hyd. Foot Pedal |
Hydraulic Surge Hydraulic Manual Hyd. Foot Pedal |
Hydraulic Surge Hydraulic Manual Hyd. Foot Pedal |
Hydraulic Surge Hydraulic Manual Hyd. Foot Pedal |
| Hitch and Hitch Supports | Heavy Duty | Heavy Duty | Heavy Duty | Heavy Duty |
| Various Tire Sizes | 550/45x22.5 600/50x22.5 425/65X22.5 |
550/45x22.5 600/50x22.5 425/65X22.5 |
550/45x22.5 600/50x22.5 425/65X22.5 |
550/45x22.5 600/50x22.5 425/65X22.5 |
| Safety Chain | Optional | Optional | Optional | Optional |
