Meyer Farm Equipment 16 & 17 Ton Single Axle Model# DRX1604 & DRX1704

Double tap to zoom

Wagon Gear / Single Axle

16 & 17 Ton Single Axle Model# DRX1604 & DRX1704

Overview:

Meyer Farm Wagons set the standard for premium features in the Ag and Commercial industry. These DRX (double reach) wagons feature a new precision grade steering system, a tubular bolster and dual reaches for maximum trailing and performance. These wagon gears mate well with your forage box, gravity box, bale rack or many other applications. You won't believe how well they trail!

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

HD 4x8 Bolsters

All Meyer wagons feature a tubular bolster beam front & rear to carry the load. No formed channels like most other brands! (DRX1604 pictured)

Robust Frame

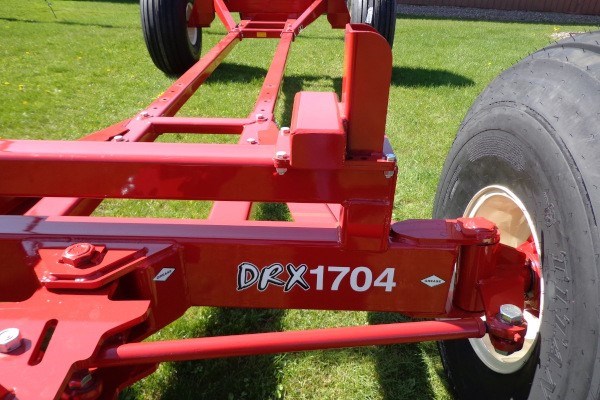

Meyer wagons put iron where you need it. This wagon has been redesigned and engineered for your toughest tasks it’s been torture tested and field proven! (DRX1704 pictured)

Dual C Shaped Reaches

The heart of the new DRX design is the DUAL REACH system. These dual reaches provide flexibility, strength and durability. The problem with most single reach wagons is they loosen or fatigue over time causes poor long term performance on heavy applications.

Stake Pocket System

This simple system provides easy installation of implements with 42" stringer spacing. It also allows for quick installation of a riser package if extra tire clearance is required for your application. (DRX1604 pictured)

DRX Precision Steering

Meyer DRX wagons feature a completely new steering system providing ease of turning, tighter turning radius and trailability that you have to see to believe!

HD Adjustable Tongue

All Meyer wagons feature an adjustable tongue assembly to match your application. The speed hitch arrangement makes quick work of hook-ups. Spring assist is standard equipment on the DRX!

T-Type Trunion Steering

This T-Type steering design provides added strength and accuracy. The vertical steering pin contains tapered bearings (shown in cut-away) for ease of steering while eliminating stress on critical components. All moving parts and tie rod pivots are greasable. (DRX1604 pictured)

Hubs / Spindles

DRX1604 wagons have 2 3/4" spindles whereas the DRX1704 features 3" spindles, both are T-Type design for maximum strength. 8 bolt, 8,000# hubs handle big loads and provide several tire/wheel options: 12.5Lx15, 14Lx16.1, 16.5Lx16.1, 19Lx16.1, 11Rx22.5 or 425/65x22.5.

Tire Options

Meyer wagon gears can be ordered with no tires/rims / rims only / tires & rims- your choice! (DRX1704 pictured here with optional riser kit)

Brake Packages

DRX1604 and 1704 gears can be outfitted with a reliable 2 wheel surge brake system (rear wheels).
