RT218
Overview:

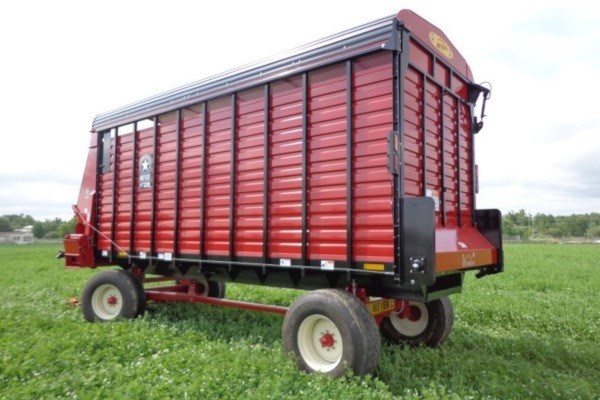

The Meyer RT200 Series Front & Rear Unload Forage Box features a 7'5" inside width, all steel frame, high speed - variable drive, HD bevel gear-drive, poly floor and removable roof. Wagon, Cart or Truck Mount models are available. It offers more capacity, more speed and more options than any other forage box on the market. RT200's are available as an open top and also offer high sides, hydraulic drive and more!
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Wagon - Trailer - Truck Mount options
- HD steel frame on 24" centers. 7'5" inside width for maximum capacity! New integrated top rail system eliminates the need for side supports on open top models.
- Removable roof system standard / open top optional
- Variable speed RT Belt Drive standard equipment - featuring our new, high-efficiency bevel gear-drive system which offers clean-out speeds up to 17' / minute!
- Spring loaded chain tension with nylon paddle tighteners on all roller chains
- HD 2" main drive shaft with machined drive sprockets - tough stuff!
- 18" diameter drum augers in a tapered formation provide a smooth mat of feed to discharge conveyor.
- 24" wide pintle chain cross conveyor provides an even discharge to your blower or bagger without the buildup associated with roller chain conveyors. Fold-down extension and conveyor hold-down system standard!
- Solid poly floor / high molecular - virgin material standard
- Spring loaded, Torsion style apron tensioning system is centrally located under the floor giving you complete chain wrap on drive sprockets. Less strain on your aprons means a longer life.
- Patented Direction Control System (DCS) offers front to rear unload switching with no coupler/pin change. NO HASSLE HERE!
- RT200 Models utilize hydraulic power & a HD bevel gearbox to tow the load(not roller chain reductions). Rear door opens and closes without assistance.
- Rear Gate Delay option cuts unloading time and aggravation!
- Basic hydraulic or cab controlled hydraulic front drive available / PTO standard
- High capacity 12" taller side package available with or without a roof.
- 4th beater available in conjunction with 12" taller side package (open top or roof models)
- LED turn signal lighting standard
Specifications
| Dimensions | RT218 |
| Floor Length | 18'6" |
| Overall Length | 22'7" |
| Inside Height (w/o roof) - std height - high sides | 6'3" |
| - high sides | 7'3" |
| Overall Height (w/o roof) | |
| top of side - std height | 94" |
| - high sides | 106" |
| top of door pivot - std height | 103" |
| - high sides | 115" |
| Less 4" truck & trailer mounts (except on XT1600 trailer*) | * |
| Overall Height (w/roof) - std height | 114.5" |
| - high sides | 126.5" |
| Inside Width | 89.5" |
| Overall Width w/conveyor extension up | 109.5" |
| Stringer Width/Height | |
| Truck/XT2200 Trailer Mount | 33.5"/6" |
| Wagon Mount | 42"/10" |
| Capacity (struck level) cu. ft. w/o roof - (6'3) std height | 862 |
| - (7'3) high sides | 1000 |
| Capacity cu. ft (with roof) - (6'3) std height | 1058 |
| - (7'3) high sides | 1196 |
| Specifications | |
| Front Apron Drive Shaft | 2" |
| Rear Drive Shaft | 2" |
| Tubular Upright Spacing | 24" |
| All Steel Frame - 24" centers (no wood) | 24" |
| HD Tubular Floor Supports | 2x2 |
| HD Top Rail Formed (no side supports needed) | Standard |
| Commercial Grade Geardrive (no worm gears) | Standard |
| Standard Features | |
| RT Variable Speed System - 0-17'/minute (PTO drive standard) | Standard |
| Apron Chains (heavy duty pintle) | 667X |
| Spring Loaded/Torsion Style Apron Tightener | Standard |
| Direction Control System (patented) | |
| Front to Rear Selection w/ No Coupler Change | Standard |
| Auger Feathering System & Conveyor Clutch/Safety Clutch | Standard |
| Cross Conveyor Chain Hold-Downs | Standard |
| Fold-Down Conveyor Extension w/ Lift Assist | Standard |
| Superslide, Solid Poly Floor (no plywood) | Standard |
| 12" Higher Sides w/4th Beater System | Optional |
| Rear Gate Delay System | Optional |
| Optional Features | |
| Hydraulic Front Drive System (in lieu of PTO) | Optional |
| Hydrarulic In-Cab Controls (in lieu of PTO) - includes hyd lift conveyor | Optional |
| 36" Fold-Down Cross Conveyor Extension (in lieu of standard 24") | Optional |
| Hydraulic Lift Option for Fold Down Cross Conveyor Extension | Optional |
| Roof Assembly (removable) | Standard |
| Roof Hood Assembly (right hand, open top units only) | Optional |
| Rear Grain Kit | Optional |
| False Front Gate for Grain Kit | Optional |
| Truck Mnt./Trailer Mnt./Wagon Mnt. | Optional |
| Tarp Systems (w/front enclosures) Front to Back Scissor Tarp (electric) Side to Side Roll Tarp (electric) | Optional |
| Clad Tuff Fiberglass Sides & Back | Optional |
