RT100 Series Wagon / Cart / Truck Mount

RT116

Overview:

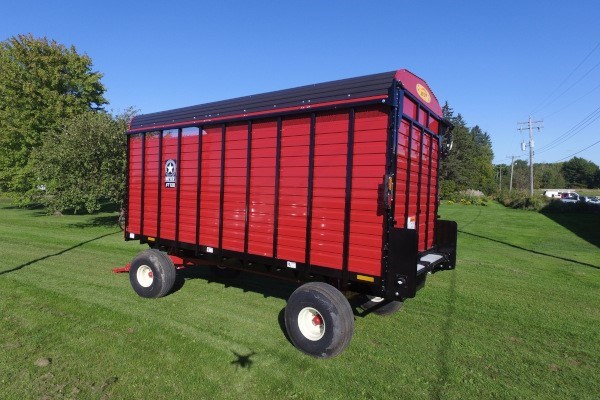

The Meyer RT100 Series Rear Unload forage box is available from 16-22' in length for Wagon, Cart or Truck Mount applications. It comes standard with a roof assemble but is available in an open top version. It features hydraulic geardrive, all-steel frame and a 7'5" insterior width. Fast, safe, efficient rear unloading of your product - at a price you can afford! High sides, gate delay and poly floor system all available.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Wagon, Trailer or Truck Mount versions available
FAST – STABLE – SAFE unloading of your materials (no hoist)
16 – 18 – 20 - 22’ models / interior width 7’5” for max capacity per running foot!
HD fully welded frame @ 24” centers. 100% steel floor support system with tubular side uprights!
Hyd Gear-drive System offers efficient, fast unloading with no roller chains / big 2” driveshaft
Removable roof system is standard but available as open top (also available with extended "crop saver" roof)
High capacity, 12” taller side package available with or without roof
Multiple front gate options to match your loading application
Corrugated steel side panels standard with oven baked red finish provide strength and rich look
Marine treated plywood floor standard / optional solid poly floor pictured here
Heavy duty 667X pintle chains standard equipment / notice 4 latches lock directly into aprons for positive latching every time!
Top Pivot rear door standard with gate delay (great time-saving feature!)
High Gloss urethane paint finish on frame
Scale packages available for wagon, trailer or truck mount applications

Specifications

MODEL	RT116
Floor Length	16' 6"
Overall Length - std roof	17' 6"
Main Apron	667 X
Overall Width	101"
Inside Width	89.5"
Power Source	Hydraulic Gear Drive
Drive Shaft Diameter	2"
Removable Roof System	Standard
Overall Height
Stard Sides / roof	114.5"
- 12" taller sides / roof	126.5"
- Std. sides / no roof	95"
- 12" taller sides / no roof	107"
Inside Height
Standard sides / roof	94.5"
- 12" taller sides / roof	106.5"
- Std. sides / no roof	75"
- 12" taller sides / no roof	87"

Optional Equipment
Available For All Models

12" Taller Sides

Rear Gate Delay

Open Top / No Roof

RH Roof Hood

Crop Saver Roof Pkg

Solid Poly Floor

Truck Mount
