Norden Mfg KN510F Tie-Grabber

Double tap to zoom

10 BALE FLAT

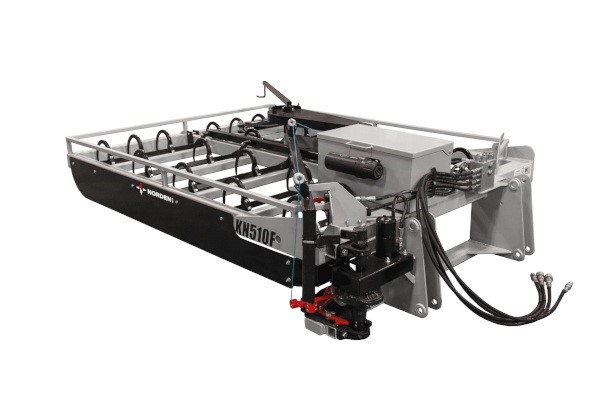

KN510F Tie-Grabber

Overview:

• The KN510F Tie-Grabber picks up and ties bales that are arranged by the AF10 bale accumulator. Four wide, two long plus tie row, flat on strings. • A lower weight requirement for this tie-grabber allows for the use of a smaller loader, and the bundle can be picked up from any of its sides. • The square dimensions of this arrangement allow for cross-stacking. • Requires a loader with at least 1,900lb lift capacity, see details for hydraulic requirements

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

KNOTTER
This highly reliable Rasspe Knotter allows for a consistent tying method.

SQUEEZE ARM
Once the machine is aligned with the bale bundle, the Squeeze Arm applies pressure and squeezes the bales tightly together to form a strong and compact bundle. This arm is important for creating a bundle that is easy to stack, move, and load.

LOADER MOUNT
This customizable option allows you the flexibility to move between multiple loader hookups.

TWINE ARM
When hydraulically engaged, the twine arm wraps twine around the bundle of bales to hold the bundle together.

MULTIPLE HOSE OPTIONS
This machine allows you to choose two hydraulic hoses with a wire control in the cab, or a four hydraulic hose option. This customizable feature allows you to choose the best option for your operation.

Specifications

Bale Configuration	4 Bales Wide and 2 Bales Long, plus a tie row with 2 bales turned sideways
Bundle Dimensions	72" to 76" Wide by 88" to 94" Long
Required Loader Capacity	1,900 lbs.
Working Height	2 ft. 6 in.
Working Length	7 ft. 6 in.
Working Width	6 ft. 0 in.
Approximate Weight	1,440 lbs.
