Norden Mfg 618 Grabber

Double tap to zoom

18 BALE EDGE

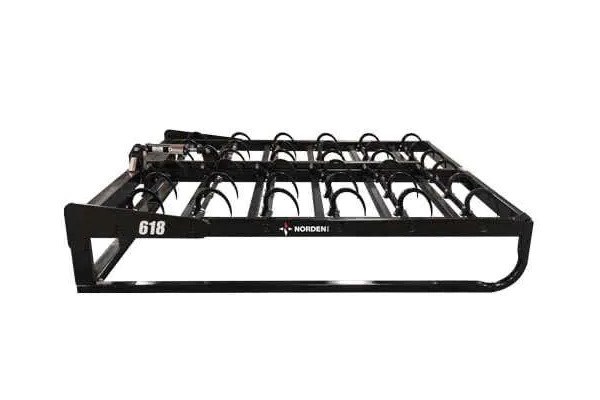

618 Grabber

Overview:

• For moving and grabbing 18-bale bundles • 18-bale grouping offers a 17% time-saving advantage in comparison to a 15-bale grouping, with each grab containing 20% more bales, and with a 17% reduction in the number of bundles • Bundle arrangement ideal for filling van trailers from the rear and for filling 9’ by 24’ wagons • Requires a loader with at least 2,200lb lift capacity and one set of remotes

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

STEEL TUBE FRAME
This quality steel frame ensures high strength and durability.

CAST STEEL BALE HOOKS
Once the group is tight, a single hydraulic cylinder rotates all the hooks simultaneously into the top of the bales to pick up the group. These durable hooks allow for 2 hooks per bale to ensure the bundle is secure while transporting bundles.

ADJUSTABLE CROWD BAR
The Standard Grabber features an adjustable crowd bar that is mounted on the side of the grabber. When approaching a group of bales, the adjustable crowd bar works in combination with the back frame to crowd the bale group together.

Specifications

Bale Configuration	6 Bales Wide and 3 Bales Long
Bundle Dimensions	90" Wide by 96" to 108" Long
Required Loader Capacity	2,200 lbs.
Working Height	1 ft. 1 in.
Working Length	7 ft. 11 in.
Working Width	7 ft. 3.5 in.
Approximate Weight	840 lbs.
