Norden Mfg KN618 Tie-Grabber

Double tap to zoom

18 BALE EDGE

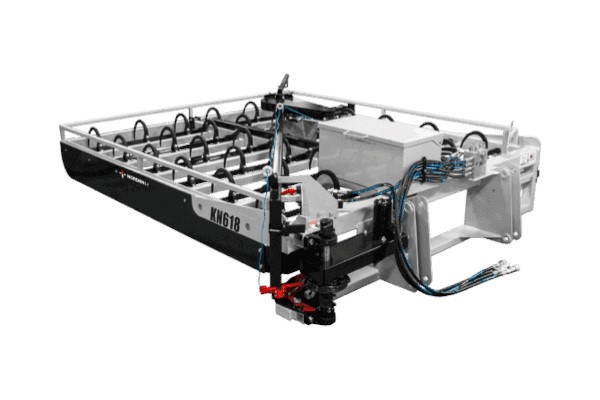

KN618 Tie-Grabber

Overview:

• The KN618 Tie-Grabber picks up and ties bales that are arranged by the AE18 bale accumulator. Three long, six wide, on edge. • The 18-bale arrangement offers a 17% time-saving advantage in comparison to a 15-bale option, with each grab containing 20% more bales and with a 17% reduction in the number of bundles • Bundle arrangement ideal for filling van trailers from the rear and for filling 9’ by 24’ wagons • Heavy-duty bale grapple. • Requires a loader with at least 2,600lb lift capacity, see details for hydraulic requirements

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

KNOTTER
This highly reliable Rasspe Knotter allows for a consistent tying method.

SQUEEZE ARM
Once the machine is aligned with the bale bundle, the Squeeze Arm applies pressure and squeezes the bales tightly together to form a strong and compact bundle. This arm is important for creating a bundle that is easy to stack, move, and load.

LOADER MOUNT
This customizable option allows you the flexibility to move between multiple loader hookups.

TWINE ARM
When hydraulically engaged, the twine arm wraps twine around the bundle of bales to hold the bundle together.

MULTIPLE HOSE OPTIONS
This machine allows you to choose two hydraulic hoses with a wire control in the cab, or a four hydraulic hose option. This customizable feature allows you to choose the best option for your operation.

Specifications

Bale Configuration	6 Bales Wide and 3 Bales Long
Bundle Dimensions	90" Wide by 96" to 108" Long
Required Loader Capacity	2,600 lbs.
Working Height	2 ft. 6 in.
Working Length	7 ft. 11 in.
Working Width	7 ft. 3.5 in.
Approximate Weight	1,540 lbs.
