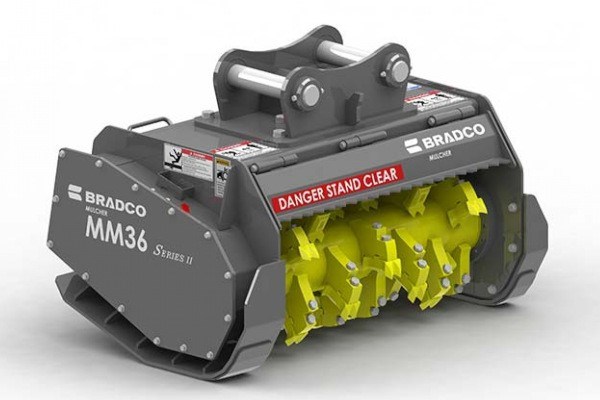

Bradco Excavator Mulcher II MM36
MM36
Overview:
The Bradco MM36 Mulcher, by Paladin, available in both standard and hi-flow hydraulic options, shreds up to 12” diameter hardwood trees with a cutting width of 36" using a patented reversible tooth design. Each tooth has a cross bar the full width of the tooth to help keep proper cutting alignment during operation. Brado excavtor mulchers have a synchronous belt drive system eliminates belt and drive sprocket slippage and a heavy duty bent axis variable displacement piston motor that offers better performance optimization. The piston motor also allows the mulcher to be switched easily to other prime movers without having to change out hydraulic motors, belts, or belt drive sprockets/pulleys.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Patented Tree Stabilization Guide
- Designed to operate from 1,550 to 2,000 RPM
- Replaceable abrasion resistant AR400 wear plate on skid shoes
- Deflector door standard to control particle size and discharge direction
Specifications
| Model | MM36E* |
| Overall Width | 48.5" |
| Overall Height | 24.8" |
| Overall Length | 33.03" |
| Cutting Width | 36" |
| Height with Push Over Bar | - |
| Length with Push Over Bar | - |
| Operating Pressure (PSI) | 3500-5000 |
| Hydraulic Flow (GPM) | 28-41, 42-60 |
| Recommended Hydraulic Horsepower (HP) | 40-65, 65-90 |
| Number of Teeth | 26 |
| Weight (lbs) | 1580, 1600 |
| Prime Mover | Excavator |
Other Models
| Model(s) | MM421* |
| Overall Width | 58" |
| Overall Height | 31.3" |
| Overall Length | 34.3" |
| Cutting Width | 42" |
| Height with Push Over Bar | - |
| Length with Push Over Bar | - |
| Operating Pressure (PSI) | 4500- 5800 |
| Hydraulic Flow (GPM) | 29-39, 39-49 |
| Recommended Hydraulic Horsepower (HP) | 55-95, 70-110 |
| Number of Teeth | 30 |
| Weight (lbs) | N/A |
| Prime Mover | Excavator E |
_
| Model(s) | MM422* |
| Overall Width | 58.6" |
| Overall Height | 33" |
| Overall Length | 34.9" |
| Cutting Width | 42" |
| Height with Push Over Bar | - |
| Length with Push Over Bar | - |
| Operating Pressure (PSI) | 4500-5800 |
| Hydraulic Flow (GPM) | 40-52, 52-63 |
| Recommended Hydraulic Horsepower (HP) | 75-115, 95-135 |
| Number of Teeth | 30 |
| Weight (lbs) | 2920, 2925 |
| Prime Mover | Excavator E |
_
| Model(s) | MM60S |
| Overall Width | 73" |
| Overall Height | 32.6" |
| Overall Length | 36.7" |
| Cutting Width | 60" |
| Height with Push Over Bar | 60.4" |
| Length with Push Over Bar | 49.5 |
| Operating Pressure (PSI) | 3000 - 4000 |
| Hydraulic Flow (GPM) | 30-45 |
| Recommended Hydraulic Horsepower (HP) | 60-95 |
| Number of Teeth | 44 |
| Weight (lbs) | 2530 |
| Prime Mover | SSL/CTL |
_
| Model(s) | MM60E |
| Overall Width | 73" |
| Overall Height | 42.3" |
| Overall Length | 36.7" |
| Cutting Width | 60" |
| Height with Push Over Bar | - |
| Length with Push Over Bar | - |
| Operating Pressure (PSI) | 3000- 5800 |
| Hydraulic Flow (GPM) | 30-60 |
| Recommended Hydraulic Horsepower (HP) | 60-95 |
| Number of Teeth | 44 |
| Weight (lbs) | 2710 |
| Prime Mover | Excavator |
_
| Model(s) | MM60C |
| Overall Width | 73" |
| Overall Height | 42.3" |
| Overall Length | 36.7" |
| Cutting Width | 60" |
| Height with Push Over Bar | 68.9" |
| Length with Push Over Bar | 53.3" |
| Operating Pressure (PSI) | 3000- 5800 |
| Hydraulic Flow (GPM) | 30-60 |
| Recommended Hydraulic Horsepower (HP) | 60-95 |
| Number of Teeth | 44 |
| Weight (lbs) | 2980 |
| Prime Mover | Comb |
_
| Model(s) | MM60H |
| Overall Width | 73" |
| Overall Height | 32.6" |
| Overall Length | 36.7" |
| Cutting Width | 60" |
| Height with Push Over Bar | 60.4" |
| Length with Push Over Bar | 49.5" |
| Operating Pressure (PSI) | 4500- 5800 |
| Hydraulic Flow (GPM) | 35-45 |
| Recommended Hydraulic Horsepower (HP) | 90-130 |
| Number of Teeth | 44 |
| Weight (lbs) | 2550 |
| Prime Mover | Specialty |
_
| Model(s) | MM601* |
| Overall Width | 75.5" |
| Overall Height | 31.3" |
| Overall Length | 34.3" |
| Cutting Width | 60" |
| Height with Push Over Bar | - |
| Length with Push Over Bar | - |
| Operating Pressure (PSI) | 4500- 5800 |
| Hydraulic Flow (GPM) | 32-44, 44-56 |
| Recommended Hydraulic Horsepower (HP) | 60-100, 75-125 |
| Number of Teeth | 44 |
| Weight (lbs) | N/A |
| Prime Mover | Excavator |
