Trenchers

Model 615

PRINT

Overview:

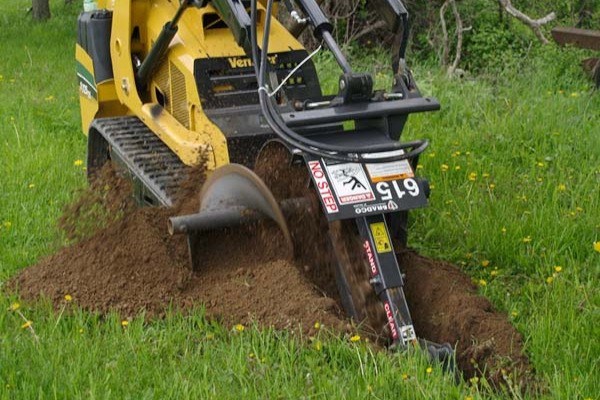

Bradco 615 and 615F Trenchers provide 24", 30" and 36" digging depths to fit most applications and include a heavy-duty boom and crumber.
Get a Quote
Send to a Friend
Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

Amount Financed ($)
Interest Rate (%)
Loan Term in Months
Monthly Payment Calculated
Yearly Payment Calculated

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:


Features

  • Two motor options match the flow of many skid steer loaders
  • Fixed length booms available featuring spring-loaded, self adjusting idler with full rock guards
  • 50,000 lb 1.65" anti-back flex-chain for tooth pattern versatility to support many soil types and conditions
  • 615F footing trencher offset allows cut outside skid steer tread up to 72" width
  • Allows tight fit with single-side spoil augering
  • Replaces dedicated machines at a fraction of the cost
  • 615F with offset auger and side shielding allow for trenching next to footing form boards
  • Two-year limited warranty

Specifications

Model 615
Boom Size a. 24" b. 30" c. 36"
Chain Widths a. 6", 8", 10", 12" b. 6", 8", 10" c. 4.5", 6", 8"
Trenching Angle a. 65º b. 65º c. 65º
Headshaft Height (Auger Touching Ground) a. 10" b. 10" c. 10"
Overall Length a. 51" b. 58" c. 65"
Overall Width a. 42" b. 42" c. 42"
Overall Height a. 28" b. 28" c. 28"
Spoil Discharge Reach a. 24" b. 24" c. 24"

_

Model 615F
Boom Size a. 24" b. 30"
Trench Depth with Auger at 65º Digging Angle a. 24" b. 30"
Chain Widths a. 6", 8", 10", 12" b. 6", 8", 10"
Trenching Angle a. 65º b. 65º
Headshaft Height (Auger Touching Ground) a. 17" b. 17"
Overall Length a. 65" b. 72"
Overall Width a. 26" b. 26"
Overall Height a. 29" b. 29"
Spoil Discharge Reach a. 18" b. 18"
Hydraulic System
GPM Requirements 6-10 or 10-16 GPM
Operating Pressure 2000 to 3000 PSI
