Paladin Attachment FFC SS 4-In-1 Construction Bucket

Double tap to zoom

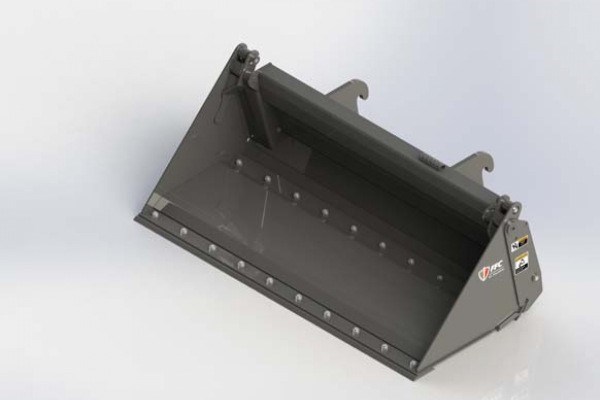

FFC SS 4-in-1 Construction Bucket

FFC SS 4-In-1 Construction Bucket

Overview:

Designed for skid steer and track loaders, TLB's and telehandlers. Widths of 60"; up to 96" available. Bolt-on reversible cutting edges and tooth bars are available for these 4-in-1 buckets.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Ideal for site cleanup, grading, scraping, grappling, dozing and brush removal
Single bevel bolt on dozer edge
Double-bevel, bolt-on clam edges, front and back
Many sizes available
IMPORTANT: Prime movers with tracks and with an operating weight of 7,000 lbs or more MUST have port reliefs installed on the prime mover's main control valve to protect both sides of the auxiliary circuit.

Specifications

Utility Models

Model	MP66
Order Codes (w/o teeth)	108018
Order Codes (with teeth)	108019
Width (overall)	66.96"
Height (overall)	27.32"
Length (overall)	34.47"
Clamp (length)	23.06"
Back Blade Length	12.36"
Clamp Opening	34.64"
Operating Pressure (PSI)	2250
Clamping Force (lbs)	2354
Weight	620
Heaped Capacity (cu/ft)	15.76

Cylinder specs
Bore	2.00"
Stroke	7.50"
Rod Diameter	1.12"

Model	MP72
Order Codes (w/o teeth)	108020
Order Codes (with teeth)	108021
Width (overall)	72.96"
Height (overall)	27.32"
Length (overall)	34.47"
Clamp (length)	23.06"
Back Blade Length	12.36"
Clamp Opening	34.64"
Operating Pressure (PSI)	2250
Clamping Force (lbs)	2354
Weight	655
Heaped Capacity (cu/ft)	17.23

Cylinder specs
Bore	2,00"
Stroke	7.50"
Rod Diameter	1.12"

Construction Models

Model	MP72
Order Codes (w/o teeth)	108022
Order Codes (with teeth)	108023
Width (overall)	73.00"
Height (overall)	27.69"
Length (overall)	37.47"
Clamp (length)	26.00"
Back Blade Length	11.52"
Clamp Opening	34.79"
Operating Pressure (PSI)	3000
Clamping Force (lbs)	6400
Weight	900
Heaped Capacity (cu/ft)	29.99

Cylinder specs
Bore	2.50"
Stroke	7.50"
Rod Diamater	1.25"

Model	MP78
Order Codes (w/o teeth)	108024
Order Codes (with teeth)	108025
Width (overall)	78.75"
Height (overall)	27.69"
Length (overall)	37.47"
Clamp (length)	26.00"
Back Blade Length	11.52"
Clamp Opening	34.79"
Operating Pressure (PSI)	3000
Clamping Force (lbs)	6400
Weight	935
Heaped Capacity (cu/ft)	21.69

Cylinder specs
Bore	2.50"
Stroke	7.50"
Rod Diameter	1.25"

Model	MP84
Order Codes (w/o teeth)	108026
Order Codes (with teeth)	108027
Width (overall)	84.75"
Height (overall)	27.69"
Length (overall)	37.47"
Clamp (length)	27.00"
Back Blade Length	11.52"
Clamp Opening	34.79"
Operating Pressure (PSI)	3000
Clamping Force (lbs)	6400
Weight	975
Heaped Capacity (cu/ft)	23.40

Cylinder specs
Bore	2.50"
Stroke	7.50"
Rod Diameter	1.25"
