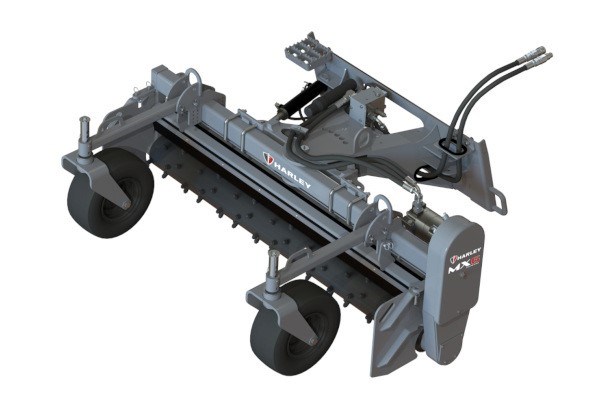

Paladin Attachment MX7

Double tap to zoom

MX Series Power Rakes

MX7

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Solid tires eliminate flats to maximize uptime and productivity on debris-heavy jobsites
Bi-directional motor allows the drum to rotate in either direction maximizing flexibility
Pure carbide teeth design - specially shaped to ensure the best possible seedbed sub-base fracture pattern and superior moisture retention and release
The box-end plates are engineered for quick and easy removal, enabling windrowing and reverse box raking without the need for bolts. Simply pull the pins to detach them
Dual independently adjustable gauge wheels allow for skim passes for seeding - or - adjust to grade and contour

Specifications

Model	MX7
Overall Height	33.2 IN.
Overall Width	93.6 IN.
Overall Length	60.8 IN.
Raking Width	85 IN.
Overall Length at 20 Degrees	70.8 IN.
Overall Width at 20 Degrees	91.7 IN.
Raking Width at 20 Degrees	81.1 IN.
Center of Gravity-Manual Angle	21.9 IN.
Center of Gravity-Hydraulic Angle	21.6 IN.
Weight-Manual Angle	1000 LBS
Weight-Hydraulic Angle	1037 LBS
Flow Range	15-25 GPM
Hyd. Motor. Disp (C.I.)	15
Number of Motors	1
Max Pressure (PSI)	3000 PSI
Max Articulation	20 Degrees
Rake Tooth Tip Diameter	9 IN.
