Paladin Attachment 22197

Double tap to zoom

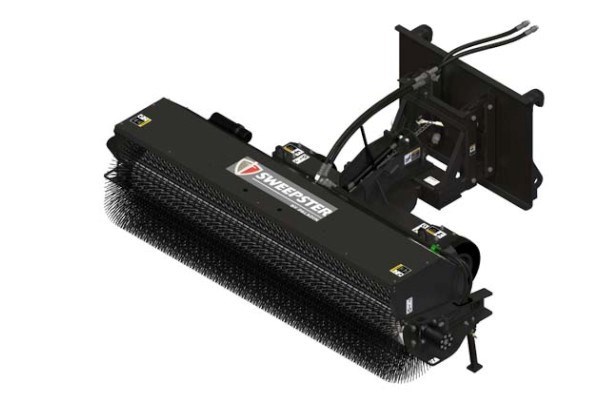

Sweepers, 221 Series, LA

22197

Overview:

The Sweepster LA Broom (Truck and Wheel Loader Angle Sweeper) is designed for use on large wheel loaders, trucks or tractors. Use for windrowing material left, right or straight. Available in 8- or 9-foot widths and with manual or hydraulic angling. This product is also available CE certified.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

32" bristles extend brush life
Drive slips out of core without removing hydraulic lines from wheel motor
Brush core is reversible for even brush wear
Powered by hydraulic motors mounted inside brush frame
Third valve required to operate; fourth valve required to operate optional hydraulic angle change
Parallel linkage with casters allow sweeper to follow ground contours
Manual angle 30 degrees left/right is standard
Choose poly, wire or poly/wire brush
Casters standard

Specifications

Model	22197
Overall Height	43.7"
Overall Width	115.8"
Overall Length	87.6"
Sweeping Width	96"
Overall Length @ 30° Angle	104.3"
Overall Width @ 30° Angle	108.5"
Sweeping Width @ 30° Angle	83.2"
Center of Gravity (Horizontal)	39"
Weight	1400 lbs
Range of Hydraulic Oil Flow
Hydraulic Oil Flow Dual Motor	18 to 36 gpm
Range of Hydraulic Oil Pressure
Dual Motor	3500 psi
