Pequea HR1140

Double tap to zoom

Rotary Rakes

HR1140

Overview:

The next step up in our hay rake lineup, the HR1140 has a clean sweep raking width of 10′ 6″ and a working width of 13′ that will allow you to cover more ground in less time. Flotation tires come standard, as does a lift cylinder, a tilt cylinder, tandem walking beams and removable tine arms for transport and storage. Together, this impressive feature set delivers improved productivity and performance.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

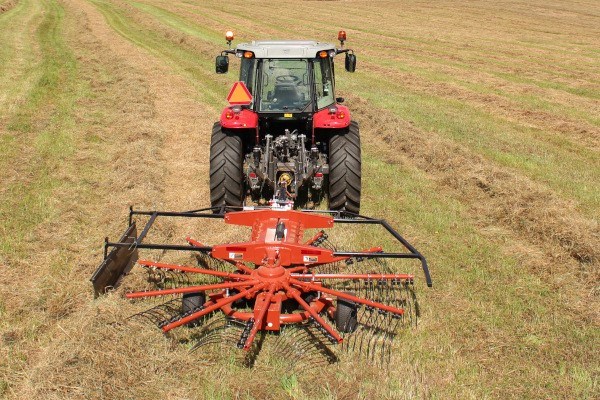

The HR1140 features an 11′ clean sweep raking width, and a working width up to 14′, also including a tilt cylinder, lift cylinder, walking beams and removable tine arms to make raking easy. We also include our 18.5 x 8 flotation tires which come standard for the HR1140.

The Standard Tandem Bogie Axle Provides smooth travel in rougher fields. The HR1140 overall height adjustment is set by bolt on each axle.
Pitch adjustment is quick and easy. Using the crank on the front lift cylinder the rake is set and will always return to the raking position when lowered into raking position
All units are equipped with a rear lift cylinder. The rake can be raised for clearing windrows or for transport in and out of fields.
The HR1140 has an easy to adjust curtain and removable arms for transport or storage.

Specifications

Working Width	13'
Raking Width	11'
Transport Width	5'
Gearbox	Enclosed Oil Bath
Gear Reduction	7.9:1
Number of Rotors	1
Tine Arms per Rotor	11
Double Tines per Arm	4
PTO HP Requirement	40 HP - 540 RPM
Hydraulic Requirement	6 GPM - 1200 psi
Direction of Raking Action	Left
Weight	1,550
Axle	Walking Beams
Tire and Wheel	18.5 x 8 Flotation Tire on 4 Bolt Painted Steel Rim
