Turbo Tedders

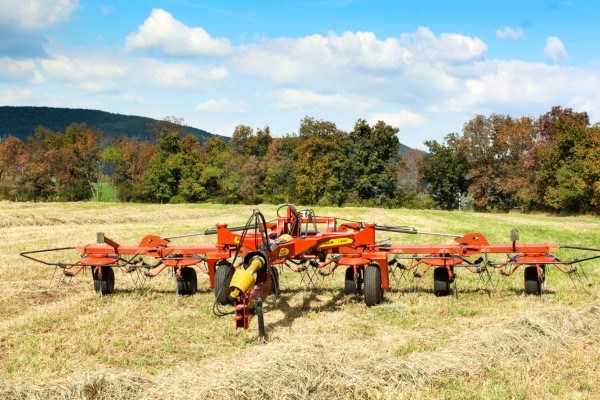

HT6102

Overview:

Need something rugged in the ­field and steady on the road? The HT6102 features a transport cart for quick travel if you’re moving from fi­eld to field or farm to fi­eld and back. The six rotors offer a 26’ 6” working width and the same heavy-duty American-made quality you want. All TurboTedders feature seven arms per rotor, with asymmetrical tines on arms made from heavy pipe, for durability. Enclosed commercial gearboxes include a 5 year warranty. At the pivot points, power is transferred to the rotors through carbo austempered fi­nger drives. Hydraulic fold and tilt are also standard, so there’s no need to leave the tractor until the job is done.

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

Amount Financed ($)
Interest Rate (%)
Loan Term in Months
Monthly Payment Calculated
Yearly Payment Calculated

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:


Features

  • The 6102 model features a cart that the back of the tedder rests on when folded up – this allows for quick and safe road transport. Airplane tires on the cart keep the machine balanced during tedding and transport.
  • The 6102 model transport cart has a built-in suspension and helps prevent wrapping in long crops.
  • Automatic transport locks keep wheels from swiveling during transport while allowing freedom in the field.
  • Like all HT Series Tedders, the HT6102 features tubular tine arms. Tubular arms provide extra durability in the field. A shot-peened double tine slides over the arm for an easy install.

Specifications

Working Width 26' 6"
Outside Tine Width 26' 2"
Transport Width 11" Carted
Overall Transport Length 9' 8"
Number of Rotors 6
Tine Arms per Rotor 7
Linkage Trailed
Rotor Tire 18.5 x 8
Weight 3,000 lb
Hydraulic Requirement 1,200 psi
PTO Power Requirement 50 hp
Rotor Gearbox Enclosed Grease
Center Gearbox Oil Bath
Tine Arm Material 1" Schedule 80 Pipe
Rotor Spindle Wheel Hub 4-Bolt with Tapered Bearings
Transport Lights Optional
