X Series Tedders

46X

PRINT

Overview:

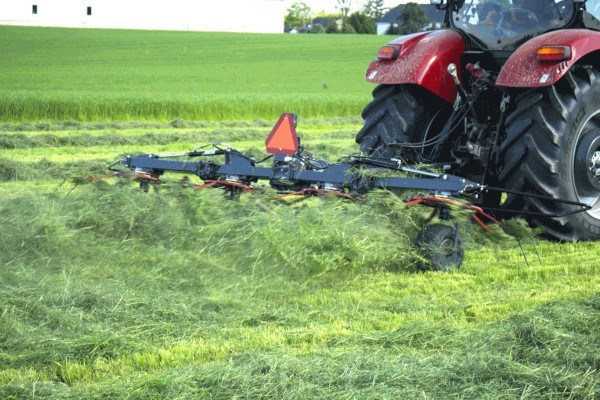

The 46X is a premium tedder at a value price. This tedder was designed with the essential features people love about Pequea’s tedders: large tires for smooth field travel and fewer flats and real 4 bolt hubs with tapered bearing that last longer and allow for faster travel. The 46X has six flat bar tine arms per rotor and with asymmetrical tines on each arm. Heavy enclosed oil-bath commercial gearboxes are driven by a hexagonal shaft. At the pivot points, power is transferred through forged steel, carbo-austempered finger drives. Hydraulic fold and tilt are also standard, so there is no reason to leave the tractor until the job is done.
Get a Quote
Send to a Friend
Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

Amount Financed ($)
Interest Rate (%)
Loan Term in Months
Monthly Payment Calculated
Yearly Payment Calculated

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:


Features

  • Power is transferred through the pivots by forged, carbo-austempered finger drives that stay engaged when the tedder is folded for transport.
  • Each rotor is supported by 18.5 x 8″ implement Tired and real 4 bolt hubs with tapered bearings.
  • Hydraulic is standard on the 46X, like all Pequea Rotary Tedders, to create tine clearance on the go. A threaded rod on the cylinder allows for finetuned adjustment.
  • The 46X uses high-strength flat bar tine arms to hold six asymmetrical tines on each rotor.

Specifications

Working Width 17'
Transport Width 8'11"
Overall Length 9'8"
Number of Rotors 4
Tine Arms per Rotor 6
Linkage Trailed
Rotor Tire 18.5 x 8
Weight 1,250 b
Hydraulic Requirement 1,600 psi
PTO Power Requirement 30 hp
Rptpr Gearbox Enclosed Grease
Center Gearbox Oil Bath
Tine Arm Material .5 inch Steel Flatbar
Rotor Spindle Wheel Hub 4-Bolt with Tapered Bearings
Transport Lights N/A
