Fertilizer Spreaders

SF5

PRINT

Overview:

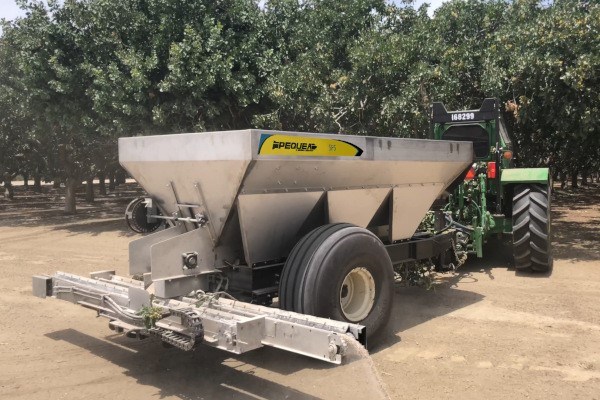

One machine for varying crop row widths. The SF5 spreader is a patent pending, one of a kind, granular fertilizer applicator for row crops, orchards and vineyards. The uniqueness of this machine uses conveyor belts to deliver material at various widths depending on crop spacing with the utilization of a track system allowing the rear attachment to expand and contract as desired with ease. Spread width ranges from a minimum spread width of 10 feet to a maximum spread width of 20 feet. The SF5 spreader is also equipped with a ground-breaking safety feature related to the rear conveying attachment. In the event the conveyors come in contact with an object, like a tree or post, the conveyor assembly will rotate about its center axis allowing the obstruction to pass and then return to center without affecting the spreading process. This feature limits equipment damage as well as crop damage if the operator accidentally comes in contact with obstructions. As with all Pequea Machine spreaders, the SF5 is equipped with a pto driven hydraulic pump that allows for adjustment of the stainless-steel mesh floor and the conveyor belt providing the ability of fine-tuning spread patterns.
Get a Quote
Send to a Friend
Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

Amount Financed ($)
Interest Rate (%)
Loan Term in Months
Monthly Payment Calculated
Yearly Payment Calculated

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:


Features

• Low profile 60" height
• Stake pockets for box extensions
• Tandem walking axles
• Self-contained hydraulic system
• Tapered box design to minimize crop damage for in-season use

Specifications

Model Pequea SF5
Payload 10,000lbs (5 Ton)
Empty Weight 3,600lbs
Hydraulics PTO Pump
Flow Control Adjustable Flow Control for Conveyors and Spinners
Floor & Chain 3/4” SS Mesh
Axle Single Axle
Tire & Wheel 21.5L x 16.1
Attachments Adjustable Width Conveyor With Break-Away Pivot
Overall Height 76"
Overall Width 128"
Overall Length 174”
Hopper Width 72”
Hopper Length 10’ (120”)
Floor Width 12”
Capacity 4.5 Cu yd (Struck)
5.2 Cu yd (Heaped)
Power Requirements 40HP
