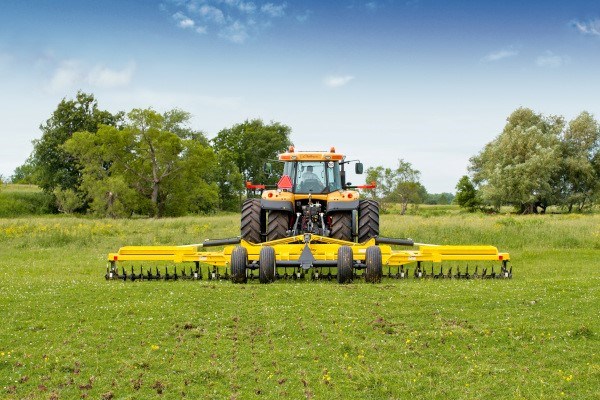

AerWay C-Flex
Overview:
For optimum AerWay operation and tined roller protection from impact and shock loads.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
The AerWay C-Flex Load Dampening System is standard on all AWST and AWFT machines. Designed to protect tined rollers from impact and shock loads, Salford’s C-FLEX ensures performance tillage across any field condition. The C-Flex is built for durability, ensuring optimum operation for AerWay tillage systems.
QUICK ADJUST ROLLER ANGLE
The AerWay C-Flex features a single roller with 4 tines per row on 7.5 in. spacing. The Quick Adjust pin system allows you to vary the roller swing angle between 0° and 10° in increments of 2.5°. This enables you to ”fine tune” your setting for aeration, renovation, overseeding or pre-working your fields, for better retention of fertilizer, liquid manure, rainfall, or irrigation. One implement that can do many jobs. The AerWay is used to get the maximum benefit out of your inputs and helps to achieve a better root system that results in higher yields.
MULTIPLE TINE OPTIONS
All Ag AerWay Units allow for use of three different tine options:
Cast Shattertine (Left) – Sharper edge, easier ground penetration, wears evenly and holds shape.
Forged Shattertine (Middle)- Better in sandy or abrasive soils, durable in rocky conditions, increased blade lean, and more aggressive tillage.
Forged Leaf Tine (Right) – Creates bigger pocket in soil, 1 lbs. of extra material on blade, often used in slurry or manure incorporation.
C-FLEX LOAD DAMPENING
The C-Flex Load Dampening System comes standard on the AWST and AWFT machines. This protects rollers and tines from impact and shock loads when an obstacle is struck in the field. This increases the longevity of the machine and reduces downtime for maintenance, keeping you in the field and out of the shop during the busiest seasons.
OPTIONAL BALLAST BLOCKS
For tough ground conditions or fields that have not been aerated in the past, additional weight may be necessary to achieve desired penetration depth. The AerWay C-Flex allows for use of concrete ballast blocks which can be placed in the machine’s integrated weight trays when needed. Each machine allows for a combination of 550 lbs. and/or 750 lbs. blocks depending on the width of the machine.
FINISHING SYSTEM OPTIONS
The AerWay C-Flex allows for the addition of Salford’s field-proven finishing system. Adding a toolbar to the rear of machine gives the option of the manual 3 bar coil tine with single 14 in. roller or the double 14 in. roller package.
Specifications
| Series | AerWay | Salford Tillage | Salford Tillage | Salford Tillage | Salford Tillage | - | - |
| Product Type | Agricultural Aeration | Agricultural Aeration | Agricultural Aeration | Agricultural Aeration | Agricultural Aeration | - | - |
| Model | C-FLEX | C-FLEX | C-FLEX | C-FLEX | C-FLEX | C-FLEX | C-FLEX |
| Size | 12.5 ft Straight Frame | 15 ft Straight Frame | 20 ft Straight Frame | 20 ft Folding Frame | 25 ft Folding Frame | 30 ft Folding Frame | 40 ft Folding Frame |
| Folding (Multi-Section) or Non-Folding | Non-Folding | Non-Folding | Non-Folding | Folding (Multi-Section) | Folding (Multi-Section) | Folding (Multi-Section) | Folding (Multi-Section) |
| Fold Type | N/A | N/A | N/A | Single-Fold Wing | Single-Fold Wing | Single-Fold Wing | Single-Fold Wing |
Dimensions and Weights
| Working width, ft (m) | 12 ft 6 in | 15 ft | 20 ft | 20 ft | 25 ft | 30 ft | 40 ft |
| Transport width, ft (m) | 12 ft 2 in | 14 ft 8 in | 19 ft 8 in | 10 ft 9 in | 10 ft 9 in | 15 ft 9 in | 20 ft |
| Transport height, ft (m) | 12 ft 5 in w/ Rollers Ext. or 13 ft 6 in w/ Rollers Ret. | 12 ft 6 in w/ Rollers Ext. or 13 ft 7 in w/ Rollers Ret. | 13 ft 10 in w/ Rollers Ext. or 14 ft 11 in w/ Rollers Ret. | 12 ft 11 in w/ Rollers Ext. or 14 ft w/ Rollers Ret. | 13 ft 3 in w/ Rollers Ext. or 14 ft 4 in w/ Rollers Ret. | - | - |
| Approximate weight, lb (kg) (w/ Standard harrows unless stated otherwise) | 2957 lbs | 3386 lbs | 4742 lbs | 6073 lbs | 6942 lbs or 7392 lbs w/ Short RLR Wings | 8236 lbs or 8686 lbs w/ Short RLR Wings | 20000 lbs |
| Other sizes available, number of widths | - | - | - | - | - | - | - |
Ground Engaging Equipment - Front Row(s)
| Front row(s) ground engaging equipment (description) | Forged ShatterTines (Leaf Tines Optional) | Forged ShatterTines (Leaf Tines Optional) | Forged ShatterTines (Leaf Tines Optional) | Forged ShatterTines (Leaf Tines Optional) | Forged ShatterTines (Leaf Tines Optional) | Forged ShatterTines (Leaf Tines Optional) | Forged ShatterTines (Leaf Tines Optional) |
| Front row(s) ground engaging equipment (quantity) | 4 Tines per Row | 4 Tines per Row | 4 Tines per Row | 4 Tines per Row | 4 Tines per Row | 4 Tines per Row | 4 Tines per Row |
| Front row(s) equipment quantity | 80 | 96 | 128 | 128 | 160 | 192 | 256 |
| Front row(s) equipment mount | C-Flex Suspension Mount | C-Flex Suspension Mount | C-Flex Suspension Mount | C-Flex Suspension Mount | C-Flex Suspension Mount | C-Flex Suspension Mount | C-Flex Suspension Mount |
| Equipment spacing, in (mm) | 7.5 in | 7.5 in | 7.5 in | 7.5 in | 7.5 in | 7.5 in | 7.5 in |
| Equipment size, in (mm) | 8 in | 8 in | 8 in | 8 in | 8 in | 8 in | 8 in |
| Angle | 0°,2.5°, 5°,7.5°, or 10° | 0°,2.5°, 5°,7.5°, or 10° | 0°,2.5°, 5°,7.5°, or 10° | 0°,2.5°, 5°,7.5°, or 10° | 0°,2.5°, 5°,7.5°, or 10° | 0°,2.5°, 5°,7.5°, or 10° | 0°,2.5°, 5°,7.5°, or 10° |
| Bearings | Maintenance Free Trunnion Bearing | Maintenance Free Trunnion Bearing | Maintenance Free Trunnion Bearing | Maintenance Free Trunnion Bearing | Maintenance Free Trunnion Bearing | Maintenance Free Trunnion Bearing | Maintenance Free Trunnion Bearing |
Ground Engaging Equipment - Rear Row(s)
| Rear row(s) ground engaging equipment (description) | Notched Low Concavity Blades | Notched Low Concavity Blades | Notched Low Concavity Blades | Notched Low Concavity Blades | Notched Low Concavity Blades | - | - |
| Rear row(s) ground engaging equipment (quantity) | - | - | - | - | - | - | - |
| Rear row(s) equipment quantity | 24 | 30 | 36 | 42 | 48 | - | - |
| Rear row(s) equipment mount | 4pc rubber torsion suspension | 4pc rubber torsion suspension | 4pc rubber torsion suspension | 4pc rubber torsion suspension | 4pc rubber torsion suspension | - | - |
| Equipment spacing, in (mm) | 10 in | 10 in | 10 in | 10 in | 10 in | - | - |
| Equipment size, in (mm) | 22 in | 22 in | 22 in | 22 in | 22 in | - | - |
| Angle | 17° open angle and 4° tipped under angle | 17° open angle and 4° tipped under angle | 17° open angle and 4° tipped under angle | 17° open angle and 4° tipped under angle | 17° open angle and 4° tipped under angle | - | - |
| Bearings | Multi-lip sealed, maintenance free rebuildable hubs | Multi-lip sealed, maintenance free rebuildable hubs | Multi-lip sealed, maintenance free rebuildable hubs | Multi-lip sealed, maintenance free rebuildable hubs | Multi-lip sealed, maintenance free rebuildable hubs | - | - |
| Equipment options | - | - | - | - | - | - | - |
Wheels and Tires
| Transport wheel mounting | 10-bolt | 10-bolt | 10-bolt | 10-bolt | 10-bolt | - | - |
| Transport tires | 600/50-22.5 Tires | 600/50-22.5 Tires | 600/50-22.5 Tires | 600/50-22.5 Tires | 600/50-22.5 Tires | - | - |
| Wing wheel mounting | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Wing tires | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Gauge wheel mounting | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Guage wheel tires | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
Hitch
| Hookup to tractor, mounted or pull-type | Pull-Type | Pull-Type | Pull-Type | Pull-Type | Pull-Type | Pull-Type | Pull-Type |
Depth and Level Adjustment
| Typical operating depth, in (mm) | Up to 8 in | Up to 8 in | Up to 8 in | Up to 8 in | Up to 8 in | Up to 8 in | Up to 8 in |
| Operating speed (mph) | 8-14 mph | 8-14 mph | 8-14 mph | 8-14 mph | 8-14 mph | - | - |
| Depth control | Single point depth control | Single point depth control | Single point depth control | Single point depth control | Single point depth control | - | - |
| Fore/aft leveling | - | - | - | - | - | - | - |
Tractor Requirements
| Required power, hp/ft (kw/m) | 7-10 hp/ft | 7-10 hp/ft | 7-10 hp/ft | 7-10 hp/ft | 7-10 hp/ft | 7-10 hp/ft | 6-10 hp/ft |
| Remote Hydraulic Values required | 4 | 4 | 5 (includes hyd. Jack) | 5 (includes hyd. Jack) | 5 (includes hyd. Jack) | - | - |
| Hydraulic Pressure | - | - | - | - | - | - | - |
Finishing Attachment Options
| Option 1 | Cage Roller | Cage Roller | Cage Roller | Cage Roller | Cage Roller | - | - |
| Option 2 | Otico Wave-Profile FarmFlex Roller | Otico Wave-Profile FarmFlex Roller | Otico Wave-Profile FarmFlex Roller | Otico Wave-Profile FarmFlex Roller | Otico Wave-Profile FarmFlex Roller | - | - |
| Option 3 | - | - | - | - | - | - | - |
| Option 4 | - | - | - | - | - | - | - |
