Pull Type Spinner Spreaders

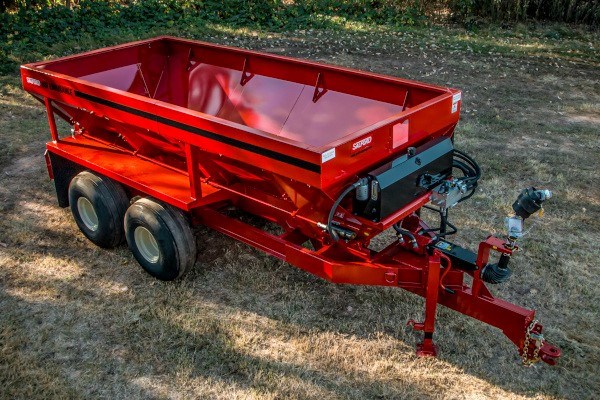

Endurance Spreader
Overview:
The industry leader in litter spreaders for uniform spread pattern and precision application.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Salford’s Endurance is the definition of excellence among litter spreaders on the market today. This pull-type spreader provides precision in targeted delivery of organic nutrients and is ideal for poultry litter, manure, shavings and a variety of other organic materials. The Endurance is a tough, durable spreader that achieves targeted application with a uniform spread pattern. Powered by hydraulics and a spinner system that achieves a wide spread pattern, this pull-type unit is available in lengths ranging from 14’–24’ and made to get the job done when it comes to spreading a range from light to heavy materials on farms of all sizes.
ENDURANCE STANDARD FEATURES
- Hydraulic Binary Manifold with pilot operated relief, manual flow controls for spinner and conveyor, conveyor dump valve
- Heavy-duty 2-section hydraulic pump (on-self contained hydraulic units)
- 35-gallon hydraulic reservoir with fill, sight window, temp gauge, drain and vent
- Proprietary 2 1/2″ spinner motors (provides optimal pressure seal protection)
- Tandem conveyor drive gearbox
- 6 x 1/4″ spinner fins per spinner
- 10-gauge hopper with 7-gauge rails, 45-degree hopper sides, sight window
- Hopper-on-frame construction (bolt-down)
- Dual rack-and-pinion gate (prevents jamming)
- 34″ conveyor with 88K heavy-duty chain, bars every other link (close bar)
SPREAD A VARIETY OF MATERIALS
Ideal for livestock and poultry farmers or custom applicators, the BBI Endurance will spread a variety of materials.
- Chicken litter
- Turkey litter
- Beet lime
- Lime
- Bark
- Wood chips
- Shavings
- Pelletized material
HOPPER CONSTRUCTION OPTIONS
LOW PROFILE HOPPER has a capacity of 16 cu/ft. struck level per linear ft., at 88 in. wide and 45.5 in high
STANDARD PROFILE HOPPER has a capacity of 20 cu/ft. struck level per linear foot, at 88 in. wide and 51.5 in. high
HIGH PROFILE HOPPER has a capacity of 23.5 cu/ft. struck level per linear foot, at 88 in. wide and 57.5 in. high
WIDE HOPPER has a capacity of 21 cu/ft. struck level per linear foot, at 96 in. wide and 52 in. high.
SUSPENSION OPTIONS
Option rich Endurance model offers Torsion Axle or Walking Beam suspension types available for a variety of tire sizes and hopper construction choices.
LIME SPREADER PACKAGE OPTION
Now more than ever, the Endurance gives you greater return on investment through more choice on the farm, with heave duty lime packages available. Greater versatility for greater economic performance, season to season.
Close bar conveyor chain (Bars every other link)
Center-V
Single Tandem Gear Case
HIGH PERFORMANCE LIME SPREADER PACKAGE
3rd run 88k conveyor chain
Over-slung center-V
Poly Floor UHMW
2 Tandem gear cases
Walking beam suspension
Specifications
| Series | BBI | BBI | BBI | BBI | BBI |
| Size | 240 cu-ft, 304 cu-ft, 368 cu-ft , 400 cu-ft | 270 cu-ft, 342 cu-ft, 414 cu-ft , 450 cu-ft | 300 cu-ft, 380 cu-ft, 460 cu-ft , 500 cu-ft | 330 cu-ft, 418 cu-ft, 506 cu-ft , 550 cu-ft | 360 cu-ft, 456 cu-ft, 552 cu-ft , 550 cu-ft |
| Product type | Pull Type Spinner Spreaders | Pull Type Spinner Spreaders | Pull Type Spinner Spreaders | Pull Type Spinner Spreaders | Pull Type Spinner Spreaders |
| Model Name Short | Endurance 16-ft | Endurance 18-ft | Endurance 20-ft | Endurance 22-ft | Endurance 24-ft |
| Model Name Long | Endurance 16' Tandem Axle Spreader | Endurance 18' Tandem Axle Spreader | Endurance 20' Tandem Axle Spreader | Endurance 22' Tandem Axle Spreader | Endurance 24' Tandem Axle Spreader |
Materials Spread
| Fertilizer | NO | NO | NO | NO | NO |
| AG Lime | YES | YES | YES | YES | YES |
| Litter | YES | YES | YES | YES | YES |
| Organics | YES | YES | YES | YES | YES |
| Seed | NO | NO | NO | NO | NO |
| Other | Chick Litter and Composted Manure | Chick Litter and Composted Manure | Chick Litter and Composted Manure | Chick Litter and Composted Manure | Chick Litter and Composted Manure |
| Number of products applied, including optional hopper compartments | 1 | 1 | 1 | 1 | 1 |
Detailed Equipment Specifications
| Paint | Standard Paint Color – Red Optional Paint Color – Green Optional Paint Color – Gray |
Standard Paint Color – Red Optional Paint Color – Green Optional Paint Color – Gray |
Standard Paint Color – Red Optional Paint Color – Green Optional Paint Color – Gray |
Standard Paint Color – Red Optional Paint Color – Green Optional Paint Color – Gray |
Standard Paint Color – Red Optional Paint Color – Green Optional Paint Color – Gray |
| Hitch | Standard: Cat 4 Cast Hitch Option – Includes Pintle and Clevis Hitch Cat 4 Articulating Hitch |
Standard: Cat 4 Cast Hitch Option – Includes Pintle and Clevis Hitch Cat 4 Articulating Hitch |
Standard: Cat 4 Cast Hitch Option – Includes Pintle and Clevis Hitch Cat 4 Articulating Hitch |
Standard: Cat 4 Cast Hitch Option – Includes Pintle and Clevis Hitch Cat 4 Articulating Hitch |
Standard: Cat 4 Cast Hitch Option – Includes Pintle and Clevis Hitch Cat 4 Articulating Hitch |
| Jack | Heavy-duty tongue jack | Heavy-duty tongue jack | Heavy-duty tongue jack | Heavy-duty tongue jack | Heavy-duty tongue jack |
| Tarp | Standard: No Tarp Optional: Roll Top Mesh Tarp, Manual control |
Standard: No Tarp Optional: Roll Top Mesh Tarp, Manual control |
Standard: No Tarp Optional: Roll Top Mesh Tarp, Manual control |
Standard: No Tarp Optional: Roll Top Mesh Tarp, Manual control |
Standard: No Tarp Optional: Roll Top Mesh Tarp, Manual control |
| Tail Light | Standard: No Tail Lights Optional: Rear Tail Lights with Turn Signal, Side Markers, Wired with Corrosion Resistant Wiring Kit |
Standard: No Tail Lights Optional: Rear Tail Lights with Turn Signal, Side Markers, Wired with Corrosion Resistant Wiring Kit |
Standard: No Tail Lights Optional: Rear Tail Lights with Turn Signal, Side Markers, Wired with Corrosion Resistant Wiring Kit |
Standard: No Tail Lights Optional: Rear Tail Lights with Turn Signal, Side Markers, Wired with Corrosion Resistant Wiring Kit |
Standard: No Tail Lights Optional: Rear Tail Lights with Turn Signal, Side Markers, Wired with Corrosion Resistant Wiring Kit |
| Height | - | - | - | - | - |
| Weight | - | - | - | - | - |
Hopper
| Hopper Size | 16′ LOW PROFILE Hopper 240 cu-ft (88″ wide x 45.5″ high) 16′ STANDARD Hopper 266 cu-ft (88″ wide x 51.5″ high) 16′ HIGH PROFILE Hopper 322 cu-ft (88″ wide x 57.5″ high) 16′ WIDE PROFILE Hopper 350 cu-ft (96″ wide x 52″ high) |
18′ LOW PROFILE Hopper 270 cu-ft (88″ wide x 45.5″ high) 18′ STANDARD Hopper 266 cu-ft (88″ wide x 51.5″ high) 18′ HIGH PROFILE Hopper 322 cu-ft (88″ wide x 57.5″ high) 18′ WIDE PROFILE Hopper 350 cu-ft (96″ wide x 52″ high) |
20′ LOW PROFILE Hopper 300 cu-ft (88″ wide x 45.5″ high) 20′ STANDARD Hopper 266 cu-ft (88″ wide x 51.5″ high) 20′ HIGH PROFILE Hopper 322 cu-ft (88″ wide x 57.5″ high) 20′ WIDE PROFILE Hopper 350 cu-ft (96″ wide x 52″ high) |
22′ LOW PROFILE Hopper 330 cu-ft (88″ wide x 45.5″ high) 22′ STANDARD Hopper 266 cu-ft (88″ wide x 51.5″ high) 22′ HIGH PROFILE Hopper 322 cu-ft (88″ wide x 57.5″ high) 22′ WIDE PROFILE Hopper 350 cu-ft (96″ wide x 52″ high) |
24′ LOW PROFILE Hopper 360 cu-ft (88″ wide x 45.5″ high) 24′ STANDARD Hopper 266 cu-ft (88″ wide x 51.5″ high) 24′ HIGH PROFILE Hopper 322 cu-ft (88″ wide x 57.5″ high) 24′ WIDE PROFILE Hopper 350 cu-ft (96″ wide x 52″ high) |
| Hopper Material | Standard: 10-gauge hopper with 7-gauge rails, 45-degree hopper sides, sight window Optional: 7 Gauge Carbon Steel Hopper with 1/4″ Rails & Floors Standard: Steel Floor Optional: Poly Floor |
Standard: 10-gauge hopper with 7-gauge rails, 45-degree hopper sides, sight window Optional: 7 Gauge Carbon Steel Hopper with 1/4″ Rails & Floors Standard: Steel Floor |
Standard: 10-gauge hopper with 7-gauge rails, 45-degree hopper sides, sight window Optional: 7 Gauge Carbon Steel Hopper with 1/4″ Rails & Floors Standard: Steel Floor Optional: Poly Floor |
Standard: 10-gauge hopper with 7-gauge rails, 45-degree hopper sides, sight window Optional: 7 Gauge Carbon Steel Hopper with 1/4″ Rails & Floors Standard: Steel Floor Optional: Poly Floor |
Standard: 10-gauge hopper with 7-gauge rails, 45-degree hopper sides, sight window Optional: 7 Gauge Carbon Steel Hopper with 1/4″ Rails & Floors Standard: Steel Floor |
| Hopper Extensions | Standard: No Extension Brackets Optional: Extension Brackets for 6″ boards |
Standard: No Extension Brackets Optional: Extension Brackets for 6″ boards |
Standard: No Extension Brackets Optional: Extension Brackets for 6″ boards |
Standard: No Extension Brackets Optional: Extension Brackets for 6″ boards |
Standard: No Extension Brackets Optional: Extension Brackets for 6″ boards |
| Hopper Gate Control | Dual rack-and-pinion gate (prevents jamming) Stanard: Manual Operated Gate Optional: Hydraulic Gate (dual cylinders) |
Dual rack-and-pinion gate (prevents jamming) Stanard: Manual Operated Gate Optional: Hydraulic Gate (dual cylinders) |
Dual rack-and-pinion gate (prevents jamming) Stanard: Manual Operated Gate Optional: Hydraulic Gate (dual cylinders) |
Dual rack-and-pinion gate (prevents jamming) Stanard: Manual Operated Gate Optional: Hydraulic Gate (dual cylinders) |
Dual rack-and-pinion gate (prevents jamming) Stanard: Manual Operated Gate Optional: Hydraulic Gate (dual cylinders) |
| Hopper Ladder | Standard: No Hopper Ladder Optional: Ladder for Carbon Steel Hopper |
Standard: No Hopper Ladder Optional: Ladder for Carbon Steel Hopper |
Standard: No Hopper Ladder Optional: Ladder for Carbon Steel Hopper |
Standard: No Hopper Ladder Optional: Ladder for Carbon Steel Hopper |
Standard: No Hopper Ladder Optional: Ladder for Carbon Steel Hopper |
| Hopper "Inverted V" | Standard: No Invertered V Optional: Removeable Invertered V * The Inverted V running along the length of the hopper help prevent material from bridging in the hopper. |
Standard: No Invertered V Optional: Removeable Invertered V * The Inverted V running along the length of the hopper help prevent material from bridging in the hopper. |
Standard: No Invertered V Optional: Removeable Invertered V * The Inverted V running along the length of the hopper help prevent material from bridging in the hopper. |
Standard: No Invertered V Optional: Removeable Invertered V * The Inverted V running along the length of the hopper help prevent material from bridging in the hopper. |
Standard: No Invertered V Optional: Removeable Invertered V * The Inverted V running along the length of the hopper help prevent material from bridging in the hopper. |
| Hopper Sight Window | Yes | Yes | Yes | Yes | Yes |
Metering and Drive
| PTO Drive | Choice: 540 RPM Series 6 CV Joint PTO Shaft STANDARD 1000 RPM Series 6 CV 1 3/4 20 Spline STANDARD 1000 RPM Series 6 CV 1 3/8 21 Spline STANDARD No PTO – Plug to Tractor Heavy-duty 2-section hydraulic pump (on-self contained hydraulic units) |
Choice: 540 RPM Series 6 CV Joint PTO Shaft STANDARD 1000 RPM Series 6 CV 1 3/4 20 Spline STANDARD 1000 RPM Series 6 CV 1 3/8 21 Spline STANDARD No PTO – Plug to Tractor Heavy-duty 2-section hydraulic pump (on-self contained hydraulic units) |
Choice: 540 RPM Series 6 CV Joint PTO Shaft STANDARD 1000 RPM Series 6 CV 1 3/4 20 Spline STANDARD 1000 RPM Series 6 CV 1 3/8 21 Spline STANDARD No PTO – Plug to Tractor Heavy-duty 2-section hydraulic pump (on-self contained hydraulic units) |
Choice: 540 RPM Series 6 CV Joint PTO Shaft STANDARD 1000 RPM Series 6 CV 1 3/4 20 Spline STANDARD 1000 RPM Series 6 CV 1 3/8 21 Spline STANDARD No PTO – Plug to Tractor Heavy-duty 2-section hydraulic pump (on-self contained hydraulic units) |
Choice: 540 RPM Series 6 CV Joint PTO Shaft STANDARD 1000 RPM Series 6 CV 1 3/4 20 Spline STANDARD 1000 RPM Series 6 CV 1 3/8 21 Spline STANDARD No PTO – Plug to Tractor Heavy-duty 2-section hydraulic pump (on-self contained hydraulic units) |
| Material Distribution Booms/Spinners/Air Line | 6 x 1/4″ spinner fins per spinner Proprietary 2 1/2″ spinner motors (provides optimal pressure seal protection) |
6 x 1/4″ spinner fins per spinner Proprietary 2 1/2″ spinner motors (provides optimal pressure seal protection) |
6 x 1/4″ spinner fins per spinner Proprietary 2 1/2″ spinner motors (provides optimal pressure seal protection) |
6 x 1/4″ spinner fins per spinner Proprietary 2 1/2″ spinner motors (provides optimal pressure seal protection) |
6 x 1/4″ spinner fins per spinner Proprietary 2 1/2″ spinner motors (provides optimal pressure seal protection) |
| Application Swath Width | Lime and Little: Up to 50 feet | Lime and Little: Up to 50 feet | Lime and Little: Up to 50 feet | Lime and Little: Up to 50 feet | Lime and Little: Up to 50 feet |
| Material Distribution Drive | Standard: Self Contained PTO Hydraulics Optional: Plug to Tractor Hydraulics |
Standard: Self Contained PTO Hydraulics Optional: Plug to Tractor Hydraulics |
Standard: Self Contained PTO Hydraulics Optional: Plug to Tractor Hydraulics |
Standard: Self Contained PTO Hydraulics Optional: Plug to Tractor Hydraulics |
Standard: Self Contained PTO Hydraulics Optional: Plug to Tractor Hydraulics |
| Metering Drive | Tandem conveyor drive gearbox Optional: High Speed Conveyor Valve |
Tandem conveyor drive gearbox Optional: High Speed Conveyor Valve |
Tandem conveyor drive gearbox Optional: High Speed Conveyor Valve |
Tandem conveyor drive gearbox Optional: High Speed Conveyor Valve |
Tandem conveyor drive gearbox Optional: High Speed Conveyor Valve |
| Primary Metering | Standard: 34″ conveyor with 88K heavy-duty chain, bars every other link (close bar). Optional: Add a 3rd run of 88K chain. Bars are every other link. Includes UHMW rear roller support. |
Standard: 34″ conveyor with 88K heavy-duty chain, bars every other link (close bar). Optional: Add a 3rd run of 88K chain. Bars are every other link. Includes UHMW rear roller support. |
Standard: 34″ conveyor with 88K heavy-duty chain, bars every other link (close bar). Optional: Add a 3rd run of 88K chain. Bars are every other link. Includes UHMW rear roller support. |
Standard: 34″ conveyor with 88K heavy-duty chain, bars every other link (close bar). Optional: Add a 3rd run of 88K chain. Bars are every other link. Includes UHMW rear roller support. |
Standard: 34″ conveyor with 88K heavy-duty chain, bars every other link (close bar). Optional: Add a 3rd run of 88K chain. Bars are every other link. Includes UHMW rear roller support. |
| Primary Metering Minimum Output Rate | - | - | - | - | - |
| Primary Metering Maximum Output Rate | - | - | - | - | - |
| Secondary Metering | N/A | N/A | N/A | N/A | N/A |
| Secondary Metering Minimum Output Rate | - | - | - | - | - |
| Secondary Metering Maximum Output Rate | - | - | - | - | - |
| Material Banding or Section Control | N/A | N/A | N/A | N/A | N/A |
Tires and Axles
| Axle | - | - | - | - | - |
| Tire and Wheel Options | - | - | - | - | - |
Monitoring and Precision Control
| Monitors Options and Rate Control | - | - | - | - | - |
| Weigh System Option | - | - | - | - | - |
