Features

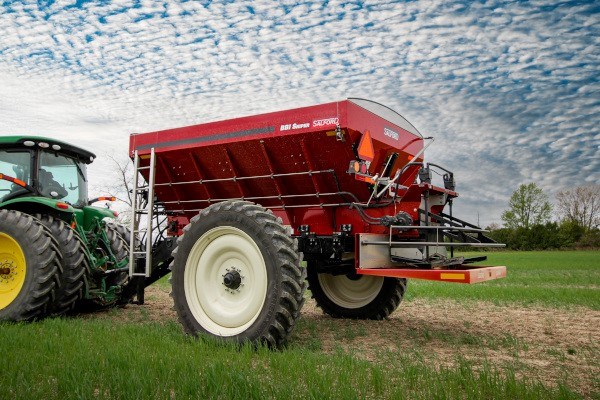

Sniper 120’ is engineered for application widths up to 120 feet, and uses patent pending technology to rapidly adjust its application swath on-the-fly. The Sniper’s tremendous application width and superior spread pattern control make for an efficient applicator that reduces overlap and keeps fertilizer out of environmentally sensitive areas. The simple spread pattern control is easy to set and maintain, keeping high acreage operators moving fast.
SNIPER STANDARD FEATURES
- ISOBUS controller ECU with Swath Control and Dynamic Metering capability
- Hydraulic Binary Manifold with pilot operated relief
- High duty-cycle hydraulics, with oil cooler, GR valve
- Series 6 CV joint PTO shaft
- Overhead mounted spinner motors
- Stainless steel spinners, fins and spread shield
- 12′ Stainless steel hopper with access ladder and Cable-Lok tarp (Hopper Volume 264 cu-ft struck)
- Dual 10″ stainless steel mesh chains with independent motors and gearboxes for LH/RH control
- 90″ to 120″ adjustable axles with 380/90R46 tires
- Heavy-duty tongue jack
120 FOOT APPLICATION WIDTH
Salford’s BBI Sniper is designed to spread fertilizer up to 120 feet. The wide swath application allows growers to get more done, faster, and with less fuel used. 120 foot application width also means 25%-50% fewer passes in the field, resulting in much less compaction.
12 SECTION CONTROL
The Sniper is capable of 12 section control, left/right boundary spreading, and application widths down to 30 feet. This application resolution helps to keep fertilizer where it’s needed, and saves growers on their input costs. The Sniper’s section control system is a simple, durable design that is engineered to be much more reliable than competitor’s spreader section control systems.
HOPPER
- Capacity: 264 cubic feet / Ton: 8.6
- 2 – Painted, 409 stainless steel
- Application Width Fertilizer up to 120 feet
- ISOBUS Compatible 12 section spread pattern control
- Roll tarp installed
DRIVE
- PTO Driven Self Contained Hydraulic system:
-
- Choice: 1000 RPM Series 6 CV 1 3/4 20 Spline
- 1000 RPM Series 6 CV 1 3/8 21 Spline
- Includes: 4 Manifolds and PWM Valves to control each spinner and each conveyor. Heat shrink fittings.
SPINNERS
Standard: Twin Independently Driven Stainless Steel Spinners, capable of ISOBUS speed control of maximum application width, and adjusting based on prescription maps
TIRE & SUSPENSION
- Standard: Single Axle High Clearance Frame with 90 in. to 120. Adjustable Axle (Adjustable in 6 in. Increments.)
- Standard: 90 in. to 120 in. Adjustable Axle w/380/90 R46 Tires
- Optional: 80 in. to 110 in. Adjustable Axle w/380/90 R46
- Optional: 800/65 R32 Tires
Specifications
HOPPER
- Capacity: 264 cubic feet / Ton: 8.6
2 - Painted, 409 stainless steel
- Application Width Fertilizer up to 120 feet
- ISOBUS Compatible 12 section spread pattern control
- Roll tarp installed
DRIVE
- PTO Driven Self Contained Hydraulic system:
- Choice: 1000 RPM Series 6 CV 1 3/4 20 Spline
- 1000 RPM Series 6 CV 1 3/8 21 Spline
- Includes: 4 Manifolds and PWM Valves to control each spinner and each conveyor. Heat shrink fittings.
CONVEYER CHAIN
- Twin 10 inch, 304 stainless steel mesh conveyor chains
SPINNERS
- Standard: Twin Independently Driven Stainless Steel Spinners
TIRE & SUSPENSION
- Standard: Single Axle High Clearance Frame with 90 in. to 120. Adjustable Axle (Adjustable in 6 in. Increments.)
- Standard: 90 in. to 120 in. Adjustable Axle w/380/90 R46 Tires
- Optional: 80 in. to 110 in. Adjustable Axle w/380/90 R46
Optional: 800/65 R32 Tires
LIGHT PACKAGE
- Standard: Rear Tail Lights with Turn Signal, Side Markers, Wired with Corrosion Resistant Wiring Kit
TARP OPTIONS
- Standard: None
- Optional: Vinyl Cable Lock Tarp
SCALES
-Standard: 8 Digi-Star Load Cells - Traditional weight readings to assess payload. The ECU's Dynamic Metering and Angle Compensation functionalities are continuously monitoring scale feedback to ensure high levels of accuracy during application
PROVEN SPLIT CHAIN ISOBUS ECU
- Hydraulic valve control for dual belt/chain, dual spinner spreader.
- Linear actuator control of left and right side drop-points.
- Static or Dynamic weighing system including Angle Compensation
- Automatic Section Control for 2 or 12 sections.
- Monitor Compatibility: JD 2630, JD 4640, Trimble TMX 2050, Trimble FM 1000 / FMX, Pro 700
- Contact Salford BBI regarding other monitor compatibility
