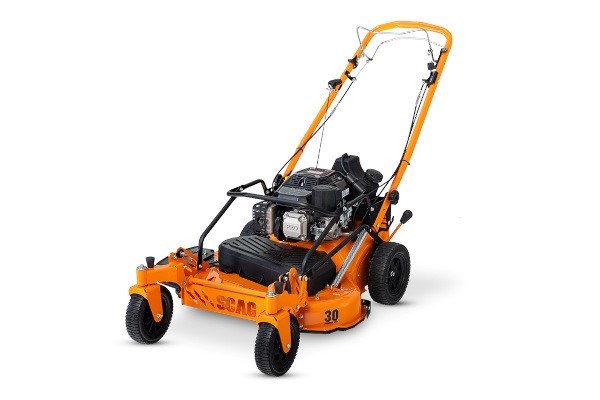

SFCII-30-7CV-S-CA
Overview:
30" Kohler® Command PRO® CV224 – CA Compliant
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Front swivel caster wheels
Turn on a dime
Front swivel caster wheels ensure ease of maneuverability in highly landscaped areas.
Steel Cutter Deck
Heavy-duty for longevity
Strong stamped 14-gauge steel deck shell with 14-gauge steel reinforcement plate plus side wear-guards for extra protection.
Steel Frame
Super strong foundation
Extra-strong, fully fabricated steel frame (not cast aluminum).
Height-of-Cut Adjustment
Super simple raise and lower
Single lever height-of-cut adjustment. Refine your height settings with adjustments from 1.5” to 5” in .5” increments.
Drive System / Offset Blades
Simplified deck-drive system
Less complex and easier to maintain than traditional timed deck setups, an offset blade setup can reduce belt replacement time by up to half compared to timed deck systems.
Quality-of-Cut
Power through it all
The large cutting chamber helps process more grass while being able to eat through wet and lush spring time grasses more efficiently. Cutter deck discharge opening is oversized for its class.
Operator Control Panel
Easy to reach it all
Ultra-comfortable, highly ergonomic control system makes operation easy hour after hour.
Oversized adjustable controls
Tailor to your needs
Oversized handles feature internally routed cables to protect from potential snags. Handle features tool-free adjustment up and down into 5 positions so it’s easy to find your sweet spot.
3-in-1 Versatility
Discharge, mulch or bag
Handle cut grass the way you want, whether it’s side-discharging, mulching or bagging. All options come as standard equipment, allowing the operator to change on the fly as needed. Discharge: discharge chute – Mulch: deck plug and mulch plate – Bag: bagging baffle, mulch plate and fabric bag.
Engine Combo
Plenty of power
Dependable and efficient Kohler Command Pro CV224 engine provides exceptional performance. Proven maintenance-free GT MV 702 transmission delivers dependable drive power.
Specifications
ENGINE & DECK COMBINATION
| Model | SFCII-30-7CV-S-CA |
| Deck Width | 30" |
| Engine | Kohler® Command PRO® CV224 – CA Compliant |
| Horsepower | 7 |
| Product Dimensions* | 30" |
| Length - Minimum (handles in highest operating position) | 67.25″ |
| Length - Max (handles in lowest operating position) | 75″ |
| Tracking Width | 29.75″ |
| Width (with chute) | 36.75″ |
| Width (with block-off plate) | 32.5″ |
| Height - Lowest Operating | 35.5″ |
| Height - Max Operating | 48″ |
| Operating Weight - Bagging | 202 lbs. |
| General | |
| Total Fuel Capacity | 1 gallon |
| Drive Tires | 10.5″ x 3″ |
| Caster Tires | 9" x 2.25" |
| Drive System | |
| Drive System Type | GT MV 702 Transmission |
| Pumps | N/A |
| Motors | N/A |
| Forward Ground Speed | Up to 3.5 mph |
| Reverse Ground Speed | N/A |
| Parking Brake | Hand lever |
| Deck | |
| Cutting Widths | 30″ |
| Type | Extra-strong, stamped steel cutter deck. Offset blade, non-timed deck setup. |
| Cutting Height | 1.5″ to 5″ in .5″ increments. |
| Lift | Hand lever. Single-point adjustment. |
| Construction | 14-gauge, stamped steel deck shell with 14-gauge spindle reinforcement plate. Side reinforcement plates offer extra protection against impacts. |
| Spindles | Aluminum housing with sealed ball bearings. |
| Blade Engagement | Blade brake clutch allows operator to disengage cutter blades without shutting off the machine. |
