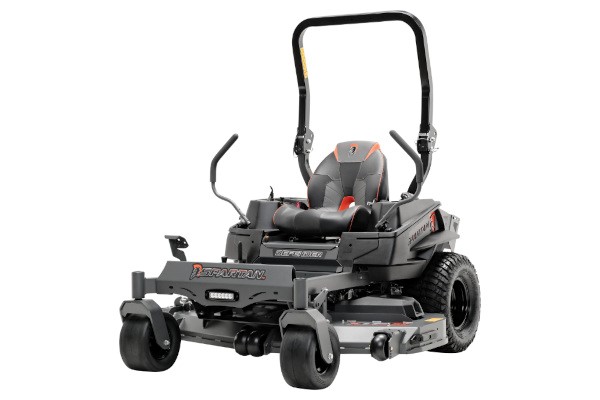

54" Kawasaki FR691 23 HP
Overview:
- Deck Sizes: 48" / 54" / 60"
- Horsepower: 23 / 24 HP
- Deck Height: 4.5"
- Top Speed: 8 MPH
- Fuel Capacity: 5 Gal
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
HD Fusion Welded Frames
The frames on RZ-C models and up are constructed from heavy-duty 3" x 1.5" 11-gauge tube steel. Without a doubt, Spartan Mowers are built tough.
Enhanced XTF Deck System
Our Xtreme Turf Flow (XTF) decks have been redesigned and enhanced to meet the spring, summer, and fall mowing conditions everywhere. This enhanced deck system is available on all models from the Defender up.
High Quality Parts
Commercial-grade DNA is a key characteristic of Spartan Mowers, so our models feature the same heavy-duty components across the lineup.
Design & Style
Our passion for muscle cars from the late '60s has fueled the design of Spartan Mowers. Mow in style and turn heads with the stealthy profile of a Spartan.
LED Light Kits
Mounted directly to the front of the mower, an LED light bar is great for finishing up at dusk and lighting the way to your trailer or shed. Light bars are standard on Spartan's RZ-HD Blackout, RT-HD, SRT series, KG-XD, and KGZ-XD models. *Available upgrade on RZ-C, RZ, RZ-Pro, and RZ-HD.
Anti-Slip Mat
All models are equipped with a rubber anti-slip foot mat that helps reduce vibration from the transmission to the operator’s foot.
Adjustable Steering Arms
Adjustable steering arms add comfort for the best fit while mowing. *Standard on the RZ-HD Blackout and up. Available upgrade on the RZ-C, RZ, RZ-Pro, & RZ-HD.
U.S.A.
Defender models and up are made with U.S. and global parts at our facility in Batesville, Arkansas. We're proud of our hardworking team and community.
EZ Debris Removal
To help keep your machine cleaner after each use, our belt covers are open in all directions for easy removal of accumulated debris.
All Features:
- 1 1/2" x 3" Tubular Welded Frame
- Magnetic Pin Height Adjustment
- Key Switch Panel
- Foot Operated Deck Lift
- Automatic Parking Brake
- Hydro-Gear ZT-2800 Transmission
- 5 gal Fuel Capacity
- 4.5" Deck Height
- 18,500 FPM Blade Tip Speed
- Protective Side Deck Trim
- Folding ROPS
- 3-year Warranty
- Adjustable Steering Arms
Specifications
- Engine Name: Kawasaki FR691
- Horsepower: 23 HP
- Fuel Capacity: 5 Gallons
- Hydraulic Drive: Hydro-Gear ZT-2800
- Hydraulic Drive Torque: Up to 300 ft-lb
- Hydraulic Drive Maintenance: 400 Hours Between Oil Change
- Front Tires: 13" Bias Ply
- Drive Tires: 22x11-10 Carlisle Turf Armor
- Wheel Type: Steel
- Speed (F/R): Forward - Up to 8mph Reverse - Up to 5mph
- Acreage: Up to 2
- Seat: Premium
- Steering Levers: Soft-Touch Knobs to Adjust Forward and Back. Adjustable Up and Down
- Control Panel LCD Display: Hour Meter - Engine Hours
- Control Panel LED Warning Indicators: N/A
- Ignition: Key Switch
- Auxiliary Power: N/A
- Storage: Cup Holder and Deep Storage Tray
- Hitch: N/A
- LED Light Bar: Full Beam
- Deck Size: 54"
- Deck Depth: 4.5", 7 gauge deck
- Deck Lift: Foot Operated
- Deck Adjustment: Magnetic Pin Height Adjustment
- Cut Height: 1" to 5" with 15 Cut Heights
- Blade Spindles: Cast Aluminum, No Maintenance/Sealed Bearings
- Parking Brake: Automatic in Control Arms
- Frame: 1.5" by 3" Powder Coated Frame
- Width: 54" Deck - 55.5" Wide
- Weight: 765 - 862 lbs
- Length: 81"
- Height: 74" with ROPS up - 49" with Folding ROPS down
